Shuttle Loom Heald Frame Parts Lifting Heald Hook

Product Details

Product Description

Product Description

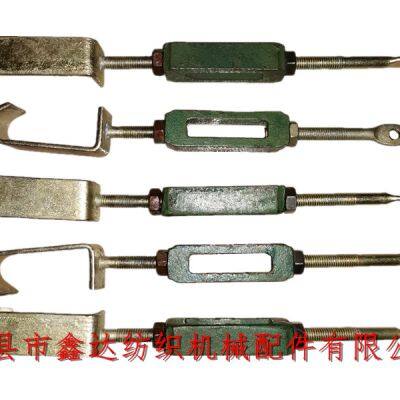

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Shuttle Loom Heald Frame Parts Lifting Heald Hook, heald hook accessories for the heald frame hook of 1511 type (42 ", 44", 56 ") loom. The assembly is composed of M00-3 upper hook, M33 heald hook flower basket (adjusting nut) and M34 upper hook screw. Its upper end M34 is connected with the heald belt (generation) on the upper surface of the heald roller, and its lower end is hooked with the heald frame flat tube, It plays a connecting role in the heald frame mechanism of loom.
Textile hardware accessories - Heald Frame hook of loom. The heald hook of textile machine is extended or contracted by rotating the green flower basket (adjusting nut) in the middle. The weight of a single upper hook is 0.16 kg / set, which belongs to the heald lifting accessories of loom. Generally, each loom uses 4 sets, that is, 1 at both ends of each heald frame.
During the upper and lower reciprocating movement of the heald frame of the automatic loom, it is necessary to pull the heald hook at the top of the weaving machine to pull the heald frame to pull the hook. For the requirement of the height of the hoisting frame, adjust the hoisting and tightening of the hoist, as long as it properly put the nut on the upper and lower basket of the heald frame, or put the upper and lower flower basket of the hoisting hoist loose. If the warp position is low, just release the flower basket nut of the lower heald lifting rod and tighten the flower basket nut of the upper heald lifting belt.
The length of the heald hook accessories hanging on the heald frame hook of the loom is about 25cm, the width of the hook M00-3 is 22mm and the length is 11.2cm; The diameter of the lifting heald hook screw is M8, the total length of M34 is 92mm, and the inner diameter of the round hole is 7mm. The lifting heald fitting of loom is an important part of the shed formed by warp layering in the weaving process. According to the number of rows of heald frame of loom, its usage needs to be adjusted specifically.

---
