Product Details
Product Description
Product Description

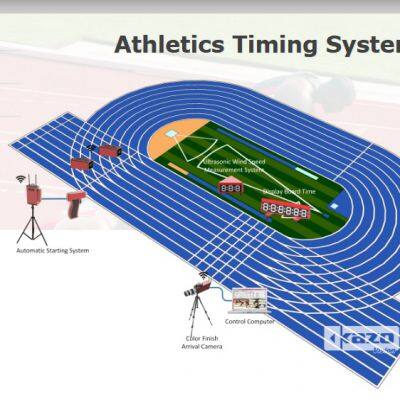

Athletics Timing System
Through the cooperation of Timing Software, Chip Timing Host, Chip Timing, Detection loop, Race Timing Software, Photo Finish Camera, Meet Management Server and other systems, using high-speed color CCD digital camera and advanced image data processing technology, the timing accuracy of the equipment meets the requirements of professional competitions, with high timing accuracy, fast and accurate interpretation, strong stability It has the characteristics of simple operation, convenient carrying and installation, and less consumables.
Application:
Various levels of domestic and international Athletics competition.
School sports, physical fitness test and college entrance sports test.
Athletics competition of school sports.
Daily training, assessment and competitions in troops and military academies.
1 Match Timing Software
Features:
Support the simultaneous operation of shooting and score interpretation.
When the computer crashes and the software is restarted, the timing can
be restored with one click.
The accuracy of score output is 0.0001s ~ 1s.
Multiple orders and reset the order time.
Support zero time calibration function.
Support stop timing to continue shooting.
Support automatic image clipping and filtering redundant images.
Support large screen display of scores and images.
Support automatic scoring.
Support the printing of transcripts and the generation of Excel sheets and
TXT documents.
Support selecting wrong groups and associating images with
corresponding groups after the competition.
2 Automatic Starting System
Specification:
Model: KS-STM100
Size of starting host: 23×13.5×5.5 CM
Weight: 1.5 KG
Size of speaker: 31×26×33 CM
Weight: 7 KG
Features:
Support electronic starting gun.
The starting distance is up to 2000 meters.
Support wireless start button.
Support microphone voice input.
Voice and starting shot dual output.
The host can work continuously for 8 hours without external power.
The sound can work continuously for 8 hours without external power.
Support zero calibration of electric meter.
Support multiple orders and multiple trigger record storage.
3 Color Finish Arrival Camera
Specification:
Model: KS-PHFC10
Host size: 29.8×14×15.6 CM
Weight: 2 KG
Power: 14.8-16.8V / 1-2A
Display: Full color image
Features:
Support image automatic exposure processing.
Support positioning athlete sprint image.
Support front capture sprinter chest number cloth.
Support multiple orders and reset the order time.
Support zero time calibration function.
Support stop timing to continue shooting.
Support image local magnification function.
Automatic image clipping to filter redundant images.
Support remote interpretation: one computer for shooting and another
computer for interpretation.
Support thumbnail display to quickly locate athletes.
Support video playback.
Support PNG and BMP image generation.
4 Ultrasonic Wind Speed Measurement System
Specification:
Model: KS-WSP-TRID
Size: 96×83×51 CM
Weight: 30 KG
Power: 42V / 2A
Material: Alloy
Features:
Parallel to the running direction of the athlete, when the wind is
downwind, the wind speed shows a positive value.
Parallel to the running direction of the athlete, when facing the wind,
the wind speed shows a negative value.
Branch response speed <= 1s.
It has the functions of wind speed measurement and countdown.
The measurement of wind speed can be controlled wirelessly.
The countdown can be controlled wirelessly.
5 Meet Management Server (OVR)
Specification:
Model: KS-MMS-MINI
Size: 260x135x35 (mm)
Weight: 1.0 KG
Features:
Easy to create a match, and import the match entry information.
Arrangement the match with variants of game systems. Including
elimination, round-robin, etc.
Provide the match information to the scoring software on each
venue/court.
Gather the real time score and statistics information from the scoring
software. Monitor the progress of the match.
Summary and print integrated report.
Generate standard reports for the match, including start-list, results,
combined results, ranking, etc.
Print certifications with adjustable print templates.
success cases：
2023 September, 2023 Equestrian Open and Tianjin Equestrian Club Joint Invitational Tournament
2023 Equestrian Open and Tianjin Equestrian Club Joint Invitational TournamentOur Equestrian Scoring System and Title Maker is successfully used in the match.
>>
