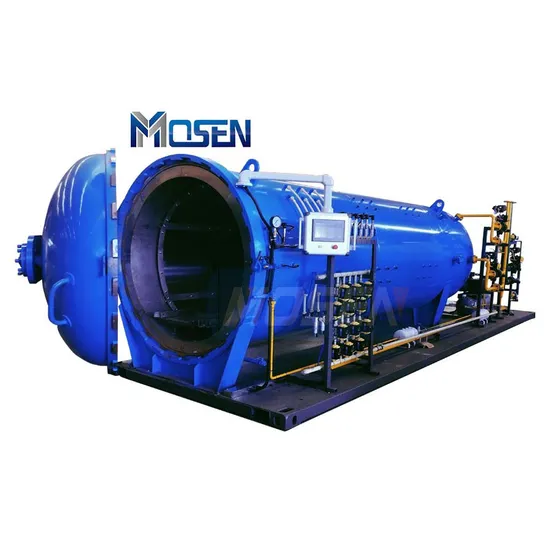

Carbon Fiber Autoclave for Ballistic Armor Bonding Autoclave

Product Description

Product Description Carbon Fiber Autoclave for Ballistic Armor Bonding Autoclave
1. Electric curing ensures effective heating all around the interior chamber.
2. Motor fans make air evenly circulation for temperature distribution better.
3. Double channel PLC control system, alternative control channel guarantee the preset
process progressive while the autoclave accident happens.
4. The vacuum port connects with the vacuum bag's pressure, control, and detection independently.
5. Interior air circulation system
6. Chamber and motor cooling system
7. Auto door leaf with oil cylinder control
8. Each vacuum port independently controls and detects
9. Temperature, pressure, and time pre-setted and adjustable
10. Interior and outside Insulation
Composite Autoclave specifications need to be confirmed with you, diameter, length, pressure, temperature, etc. Product Parameters

MODE	WORK DIAMETER	WORK LENGTH	MAX.TEMP	MAX.PRE	RATE.TEMP	RATE, PRE	CONTROL
DN0610	600MM	1000MM	160ºC	0.6MPA	3ºC/MIN	0.1MPA/MIN	PLC+PID
DN1530	1500MM	3000MM	200ºC	1.2MPA	3ºC/MIN	0.1MPA/MIN	PLC+PID
DN3050	3000MM	5000MM	250ºC	1.8MPA	3ºC/MIN	0.1MPA/MIN	PLC+PID

Production Application
Automatic Industrial Aerospace Prepreg Composite Autoclave For Carbon Fiber is mainly used to composite materials at high temperatures and high pressures, such as in space vehicles. It also can be applied to strengthen carbon fiber, glass fiber, etc.
Why Choose Us
Packaging & Shipping We will deliver an Automatic Industrial Aerospace Prepreg Composite Autoclave For Carbon Fiber Pressure Vesselby LCL/20'FCL/40'FCL depending on your order.Before delivery, our professional technician will do a trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
