Basic Info.
Keywords
Embroidry Machine
Embroidery Area
500*1200mm, 400*500mm
Warranty of Core Components
1 Year
Name
Flat+Bead+Mixed Embroidery Machine
Function
Cap/Shirt/Flat/3D/Sequin/Cording
Key Selling Points
Automatic
Type
Cap Embroidery Machine
Video Outgoing-Inspection
Provided
Production Capacity
50 Set/Sets Per Month
Product Description

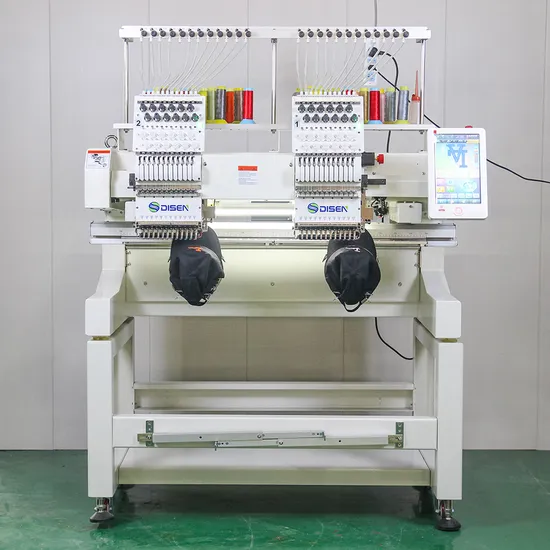

Product Description MODEL: 1202 2 Heads 12 Needles Embroidery Machine 1. Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc. 2. Embroidery area: 400*500mm 3. Controller: 10" Touch Screen Dahao A15 System,User-Friendly Interface 4. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump. 5. Automatic thread trimmer 6. The running speed:100- 1200rpm 7. 260 degree Wide cap frame unit 8. Automatic color change and thread break detection 9. Start, Stop and emergency Stop Button 10.Design Tracing Available 11.One-Step Tracing 12. 10'' touch screen display control pannel, showing real time stitching 13. Memory size: 500 Patterns,200 Million stitches 14. Computer Reads Multiple Design Formats.Such As DST.DSB And More. 15. USB port 16.Networkable And Wi-Fi capable 17. Control system can be updated easily 18. Multi-languages:Chinese, English, Spanish, Turkish, Russian.. French, Portuguese, Arabic,Thai, Italian,German, Dutch,Polish 19. Electricity: 110V/60Hz or 220V/50Hz Selfadaptable worldwide available 21.Equip With Laser Positioning(Unit price 15 $ ) 22.Woodencase Packing. 23.Machine Size: 1200x1210x1630mm Packing Size:1480x1030x1050mm 24.Net Weight:310KG Gross Weight:400KG
| Name | QTY. | Name | QTY. |
| complete machine | 1set | bobbin winder | 1set |
| body stand | 1set | owner's manual | 1pc |
| front working table | 1set | tool box | 1pc |
| cap station | 1set | needle | 2packs |
| cap framehoop | 2pcs | machine-oil | 1pc |
| cap driver | 2set | bobbin case | 2pcs |
| round hoop 95mm | 4pcs | bobbin core | 4pcs |
| round hoop 145mm | 4pcs | power cable | 1pc |
| round hoop 190mm | 4pcs | needle plate screw | 4pcs |
| Square hoop 240*240mm | 4pcs | long flat nose pliers | 1pc |
Square hoop 335*335mm | 2pcs | forceps | 1pc |
pantograph 1650*450mm | 1pc | hexagonal socket wrench | 1set |
| hoop support | 2sets | thread picker | 1pc |
| aluminum table support | 2pcs | 4*25 inner hexagon | 2pcs |
| plastic table support | 1pc | 4*12 inner hexagon | 2pcs |
| flash diskUSB | 1pc | 4*8 cross screw driver | 2pcs |
| screw knife - | 1pc | 5.5-7 wrench | 1pc |
| screw knife + | 1pc | 8-10 wrench | 1pc |
| screw knife - 5x125 | 1pc | 17-19 wrench | 1pc |
| screw knife + 5x125 | 1pc | 22-24 wrench | 1pc |
| S#5.5mm | 1pc | scissors | 1pc |
Embroidery effect Factory workshop Packing & Delivery
>>
