Steel Wire Straightening and Cutting Machine High Accuracy Wire Steel Straightening and Cutting

Product Description

Detailed Photos
Product Parameters
Product performance and features:
1. Straightening speed 90-120 meters per minute
2. High cutting accuracy, cutting length error ≤ ± 1mm
3. High straightness, the straightness of the straightened steel bars is ≤ 1 mm/m
4. Suitable for straightening and shearing cold-rolled round and ribbed steel bars, hot-rolled round and ribbed steel bars, galvanized wire
5. Electrical control: This machine is controlled by a famous brand (Delta) PLC, with a domestically produced famous brand touch screen and a domestically produced famous brand servo motor for cutting Domestic famous brand frequency converter speed regulation Other domestic famous brands of electrical components (Chint) Simple and reliable Straight motor 5.5kw Wire feeding motor 2.2Kw, servo shearing motor 3.8Kw provide remote monitoring service operation

Product name	Steel bar straightening and cutting machine
Wire reel	to hold coils of steel bars to be straightened
Guide frame	steel wire guide, protective function

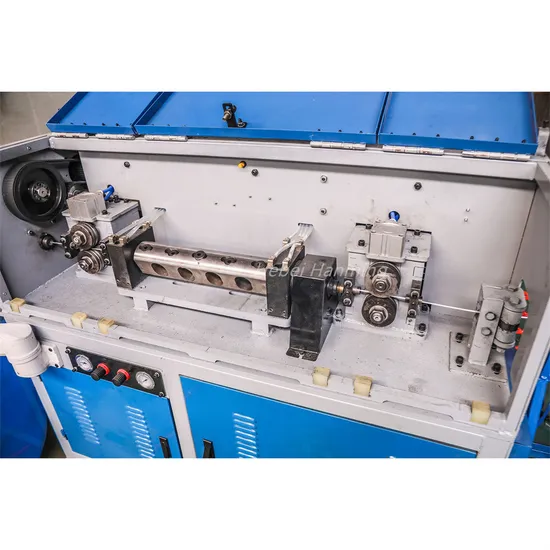

Host	Steel bar straightening and cutting
Unloading rack	for holding straightened steel bars
Control cabinet	operate and control the machine
Random accessories and tools	Provide vulnerable parts such as straightening molds, cutting knives, wire connectors, and tools for adjusting machines
Line adjustment speed	90-120m/min
Cutting length	0.5-12m, adjustable to any length
Straightness of steel bars after straightening	≤ 1mm/m
Precision of cutting length	≤± 1mm
Total installed power	7.7kW+(3.8KW servo)
Total weight	approximately 1.5 tons
Production capacity	15 tons/8 hours (including auxiliary time, taking Φ 6 steel bars as an example)

Product Description
Company Profile
Hebei Hanming Machinery Technology Co., Ltd. is a private enterprise that takes technology as the guide and scientific research and production as the main body. Since its establishment in 2014, the company has been committed to the research and development of breeding net welding equipment, successfully developing stepped vertical cage welding equipment and large-scale stacked cage welding equipment. Fully automatic welding machine (double-sided servo trimming, peeling, hairless cutting machine), bottom net automatic welding equipment (automatic bending, stacking), K-net welding equipment for two types of filaments, double-sided trimming, hairless cutter, S-shaped welding device), aquaculture curtain welding equipment. Our company strives for development through innovation, survival through quality, and excellence through integrity. Since its establishment, we have been committed to the research of automated welding equipment, automated factory production lines, automated feeding robotic arms, and mechanical equipment automation transformation.

Packaging & Shipping
Exhibition
Certifications
FAQ
1. Question: Do you accept small batch orders? What is the minimum order quantity?
Answer: Yes, we accept small batches with a minimum order quantity of 1 set
2- Question: I want to buy more machines. How can I get the latest catalog for reference?
Answer: You can contact us through your trade manager or email, and we will provide you with our latest catalog based on your information.
3-Question : Where is your factory located?
Answer: Our factory is located in Hengshui City, Hebei Province, China. The nearest airports are Beijing Airport or Shijiazhuang Airport. We can pick you up from Shijiazhuang city.
4.Question: Is the quality guaranteed?
Answer: All of our products undergo quality control through incoming inspection, 100% production inspection, and random inspection after packaging.

---
