CKL-A sanitary ceramic anti-crack testing machine GB/T 6952-2006

Product Details

Product Description

Product Description

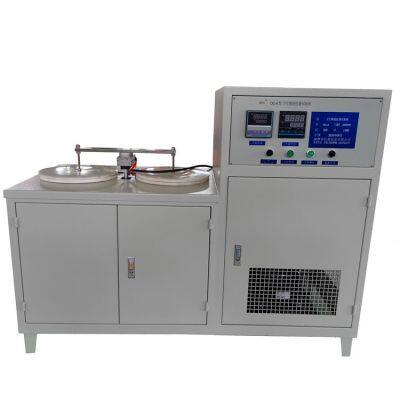

Product Introduction:CKL-A sanitary ceramic anti-crack testing machine adopts FRPP water tank and FP reinforced polypropylene anti-corrosion water pump. It has strong resistance to rust and corrosion. Its control system adopts intelligent digital regulator and time relay control, with automatic temperature control, automatic shutdown after the test is completed, etc. This machine works reliably, the operation is simple, and the test is accurate.
Requirements for working conditions:a) The ambient temperature ranges from 10 ℃ to 30 ℃;
b) The temperature for adding water is between 10 ℃ and 30 ℃
c) The relative humidity of the environment shall not exceed 85%;
d) The power supply voltage is AC220V, with a fluctuation range not exceeding ± 10% of the rated voltage;
e) The power frequency is 50Hz ± 2%;
f) In a vibration free environment;
g) There is no corrosive medium around.
Main technical parameters:1. Hot water tank heating temperature: 110 ℃± 5 ℃
2. Cold water tank cooling temperature: 2.5 ℃± 0.5 ℃
3. Input power: 2.5kW
4. Hot water tank capacity: φ 250mm × 325mm
5. Cold water tank capacity: φ 250mm × 385mm
6. Overall dimensions: 1400mm × 600mm × 1000mm

---
