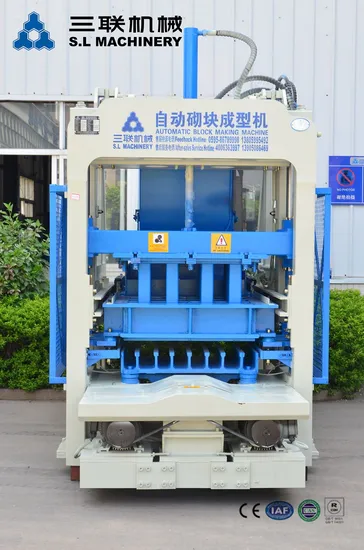

Automatic Hollow Block Machine (QT8-15)

Product Description

Block machine QT8-15
1. Raw material: Crushed stone, sand, cement, dust and coal, fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.
2. Applied products: Concrete blocks. Solid / hollow / cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, kerbstones, grass blocks, slope blocks, interlocking blocks etc.
3. Applied fields: Widely used in buildings, road pavers, squares, gardens, landscaping, city constructions etc.
Main technical parameters of block machine QT8-15
1) Exciting Force:80KN
2) Vibration Frequency: 0-60HZ
3) Total Power: 40.78KW
4) Molding Method: Automatic charging, vibrating and pressing
5) Control Mode: Full automatic PLC control
6) Pallet Size: 860x860x20mm (bamboo pallet)
7) Molding Cycle: 15-20S (depend on material)
8) Brick No. /mold:
390 x 190 x 190mm hollow block 8pcs/mold
240 x 115 x 115mm small hollow block 18pcs/mold
240 x 115 x 53mm solid brick 42pcs/mold

9)Frame Dimensions: 7500× 2100× 3020mm

10)Net Weight: 9T

11) Annual capacity: 300 days double shifts, hollow block 115, 000m3

Product Description

9)Frame Dimensions: 7500× 2100× 3020mm
10)Net Weight: 9T
11) Annual capacity: 300 days double shifts, hollow block 115, 000m3

---
