Universal horizontal and vertical milling drilling machine X6332WA

US$3,300.00-3,600.00 1 Piece (MOQ)

Basic Info.

Model NO.

X6332WA

Structure

Ram

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Overall Welding Tooth

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

Certification

CE, ISO 9001

Condition

New

Table Size

1250X320mm

Long Travel(mm)

600mm

Cross Travel(mm)

340mm

Vertical Travel(mm)

350mm

Spindle Traver

127mm

Transport Package

Plywood Case

Specification

1520x1630x2200 mm

Trademark

HOTON

Origin

China

HS Code

8459590000

Production Capacity

10 PCS/Month

Product Description

VERTICAL AND HORIZONTAL TURRET MILLING MACHINE

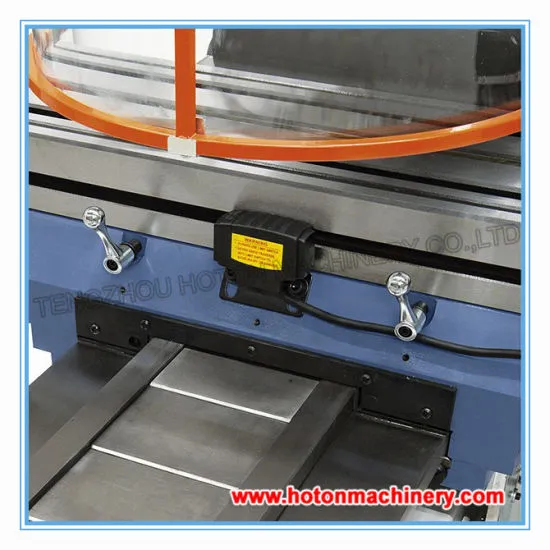

1.Hardened guideway
2.X.Y axis auto feeding, Z axis motorized lift
3.Table swivel 45 degree1,bench type milling machine
2,Cast iron after artificial aging treatment, high precision, long service life.
3,Gear power feed,motorized lift on Z axis.
4,The table rotation.
5,Hardening treatment, rectangular guideway.
6,Equipped with manual lubricating device, the lubrication on the lead screw and guideway
SPECIFICATIONS:

SPECIFICATIONS	X6332WA
Spindle taper	ISO40
Spindle travel	127
Max. horizontal milling dia.(mm)	100
Spindle speed range(r.p.m)	80-5400 V 40-1300 (12) H
Table size	1250*320
Table travel	600*340
Main motor(kw)	2.2 V 3 H
Distance between spindle and table(mm)	100-500
Max. Vertical milling dia.(mm)	25
Overall dimensions(mm)	1520×1630×2200
