Custom Home Elevator Hydraulic Platform Lift for Home

Product Description

PRODUCT PRESENTATION Tuhe is a Home Elevator Lift manufacturer china

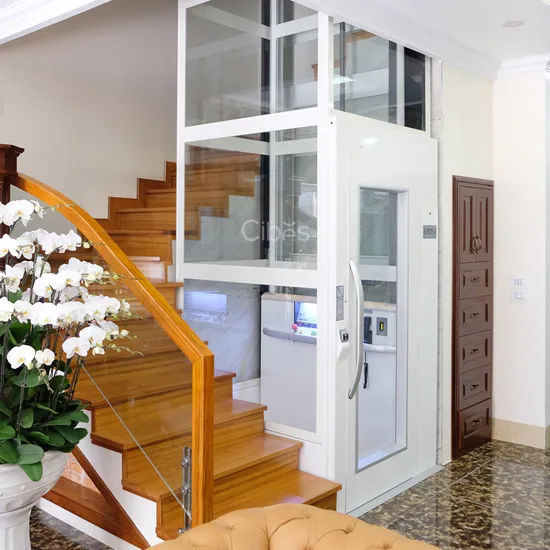

According to customer needs, Our private elevator indoor hydraulic home elevator,Its frame and glass protection is added, which is safe and beautiful. It is widely used to lift people between different floors of the home, villa, hospital, bank, etc

As the most professional Home Elevator Lift manufacturer. Our elevator products have the following advantages Features
1.Anti-falling Device: if the chain is broken, the platform can be blocked immediately within 0.02s to prevent further decline
2.Leaf Chains: Leaf chains could bear 10 times load than the rated loa of wheelchair lift
3.Limit Switch: Setting the lifting height and working as key part of the interlocking system
4.Safety Sensor: If there are people or objects at the platform bottom, the Platform cannot lower

Elevator Cabin like Modern or luxury all could be selected
Product Details
Aluminum alloy track Progressive type safety gear Standardized assembly process Backup power
Silent pumping station Electromagnetic lock of layer door Safety touch panel/touch strip Cylinder
Drive System
Hydraulic pump station and electric motor
Control Mode
Automatic travel switch
Drive Control
Self-resetting system
Overload
Over current relay protection
Materials
Stainless steel rails and guard with spraying plastics.
Working Condition
Both indoors and outdoors -20°~70°C
Entrance-Exit Way
It's customized 90°or 180°
Installation
No pit installing,easy to install and remove
<3.0m,installed directly on the floor. >3.0m, installed both on the floor and on the wall.
Switches
One control panel on the platform
Install two column switches on ground, which can be fixed at any floor needed.
Remote control, user can operate lift within 20m.
TECHNICAL PARAMETER

Model	Lifting height(mm)	Min height(mm)	Loading capacity(kg)	Table size(mm)
WL0.3-1	1000	80	300	1200*900
WL0.3-2	2000	80	300	1200*900
WL0.3-3	3000	80	300	1200*900
WL0.3-4	4000	80	300	1200*900
WL0.3-5	5000	80	300	1200*900
WL0.3-6	6000	80	300	1200*900
WL0.3-7	7000	80	300	1200*900
WL0.3-8	8000	80	300	1200*900
WL0.3-9	9000	80	300	1200*900
WL0.3-10	10000	80	300	1200*900

OUR COMPANY
Jinan Tuhe Heavy Industry Machinery Co., Ltd. is a domestic professional manufacturer of hydraulic lifting platforms,
located in the "Hometown of China's Lifting Platform Manufacturing---Jiyang". The company has a strong technical team,
has developed a variety of hydraulic lifting platform products, has made a number of technical improvements,
has a greater advantage in intelligence and reliability, and has applied for a number of technical patents,
becoming a rising star in the industry. The company has advanced equipment, strong technical force,
advanced and reasonable technological process, and complete testing methods. The company has advanced domestic assembly lines,
various production and testing equipment, and modern CNC machining. The company is strong in research and development,
which can meet the needs of product research and development such as hydraulic lifting platforms.
The company has formed a one-stop service of market research, product planning, modeling design, specialized production,
and after-sales service. The company has won the unanimous love of users with its high-quality products,
good reputation and patient and meticulous after-sales service.

---
