Low Price High Output 320t/H Mobile Asphalt Mixing Plant Xap325h with 4.5ton Batch Mixing Capacity Xap325

Product Description

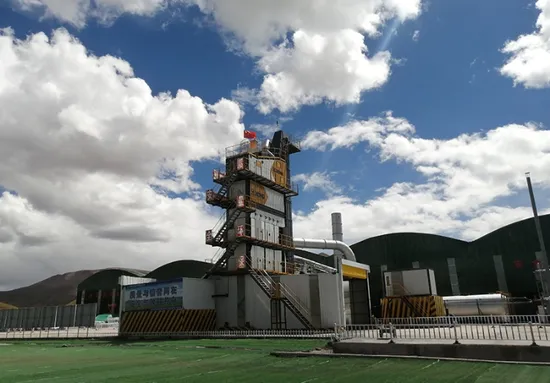

XAP Series Asphalt Mixing Plant
XAP325H Rated productivity (t/h) 320 Mixing capacity (kg/patch) 4500 Asphalt (%) 0.2 Powder (%) 0.3 Aggregate(%) 0.3 Total power(KW) 873 Maximum single power(KW) 185 XAP325H Asphalt Mixing Equipment PRODUCT FEATURE XAP325H Asphalt Mixing Equipment is an intemational advanced product developed independenty for producing asphalt mixture, modifedasphalt mixture warm-mixing asphalt mixture and others at al levels and be used in supporting with hot recycling ecuipment and foam asphaltequipment, fully meet the requirements of proiects on classified road, municipal road and freight vard.
XAP325H Asphalt Mixing Equipment performance characteristics XAP325H type asphalt mixture mixing plant is independently developed with international contemporary advanced level products, the equipment can produce all levels of asphalt mixture, modified asphalt mixture, etc., and can be used with hot recycling equipment, foam asphalt equipment, fully meet the needs of highways, grade highways, municipal roads, airports, dams, freight yards and other projects.
XAP325H type asphalt mixture mixing equipment has high-efficiency screening technology, asphalt secondary weighing technology, precision oil-stone ratio control technology, intelligent flying material compensation technology, intelligent combustion technology, intelligent ventilation technology, high-efficiency heat exchange technology, high-efficiency dust removal technology, uniform feeding technology, high-quality mixing technology, intelligent fault diagnosis technology, etc., highlighting the core characteristics of asphalt mixing equipment that is reliable, advanced, intelligent and green. In terms of environmental protection, the equipment makes the environmental protection effect of the equipment more prominent through the centralized control and treatment of flue gas, dust and noise.
Products Description
hot selling 320T/H XAP325H asphalt mixing plant with 4.5ton batch mixing capacity
Asphalt mixing station, also known as asphalt concrete mixing station, refers to the complete set of equipment used for mass production of asphalt concrete, which can produce asphalt mixture, modified asphalt mixture and color asphalt mixture. It is the necessary equipment for building expressways, grade highways, municipal roads, airports and ports.
Equipment composition:
It mainly consists of batching system, drying system, combustion system, hot material lifting, vibrating screen, hot material storage bin, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished product silo and control system.

1.More Efficient Production
Realize zero-speed start, high-speed hoist and low-speed stop, with high speed and small impact. Providing more reliable operation and better continuous production.

2.More Uniform Agitating
Features faster material cycle, more violent countercurrent and more uniform agitating. Greatly reducing cleaning intensity of labor.

3.More Comprehensive Customization
All-around and 3D environmental measures are taken to effectively control the pollution. Realize all-around control of people, vehicles, pumps and plants.
Specification

Item	Unit	Parameter
Rated productivity	t/h	320
Mixing capacity	kg/patch	4500
Metering accuracy
Asphalt	%	0.2
Powder	%	0.3
Aggregate	%	0.3
Aggregate grades	-	-
Fuel consumption	kg/t	6.5
Dust emission concentration	mg/Nm³	40
Asphalt fume	mg/m³	30
Nitric oxide	mg/m³	200
Sulfur dioxide	mg/m³	200
Carbon monoxide	mg/m³	1000
Blackness of exhaustion (Ringelman class)	-	≤I
Total power	kW	873
Maximum single power	kW	185
Floor area	m²	2501(61×41)
Thermal oilfurnace heating capacity	kcal/h	-
Optional finished product bin volume	m	55
Optional dual-fuel burner,gas burner, light and heavy oil burner	-	-
