Heavy Duty Three Roll Plate Rolling Machine

US$1,200,000.00-1,300,000.00 1 Set (MOQ)

Basic Info.

Model NO.
WS11KY series
Feature
Automation
Certification
CCC, ISO9001, CE
Warranty
12 Months
Customized
Customized
Advantage
Use Widely
Condition
New
Transport Package
Wooden Box
Trademark
HUALU
Origin
China
Production Capacity
50

Product Description

WS11KY-200×4200 Volume Capacity Table Plate yield limit 245MPa Plate yield limit 360MPa
Plate width (mm) Rolled diameter (mm) Pre-bent plate thickness (mm)2.5 times plate thickness straight edge Symmetrical plate thickness (mm) Pre-bent plate thickness (mm)2.5 times plate thickness straight edge Symmetrical plate thickness (mm)
4200 4000 165 200 127 165
4200 5000 171 207 131 170
4200 6000 175 212 135 175
4200 8000 182 220 140 181

WS11KY-200×4200 Volume Capacity Table Plate yield limit 245MPa Plate yield limit 360MPa
Plate width (mm) Rolled diameter (mm) Pre-bent plate thickness (mm)2.5 times plate thickness straight edge Symmetrical plate thickness (mm) Pre-bent plate thickness (mm)2.5 times plate thickness straight edge Symmetrical plate thickness (mm)
3500 4000 173 208 134 171
3500 5000 179 215 138 177
3500 6000 184 221 142 182
3500 8000 191 228 148 188

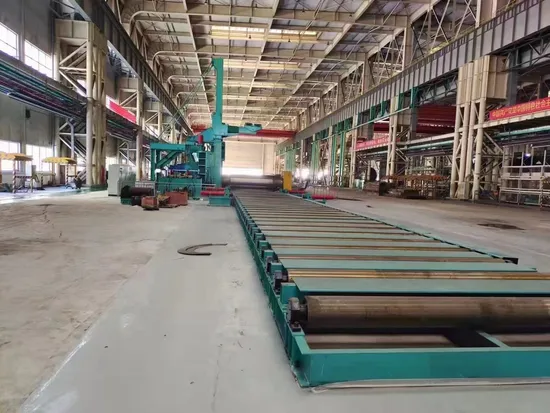

Detailed Photos

WS11KY-200×4200 Volume Capacity Table Plate yield limit 245MPa Plate yield limit 360MPa
Plate width (mm) Rolled diameter (mm) Pre-bent plate thickness (mm)2.5 times plate thickness straight edge Symmetrical plate thickness (mm) Pre-bent plate thickness (mm)2.5 times plate thickness straight edge Symmetrical plate thickness (mm)
3000 3000 179 213 139 175
3000 4500 185 221 144 181
3000 6000 191 227 148 186
3000 8000 198 235 153 193

WS11KY-200×4200 Volume Capacity Table Plate yield limit 245MPa Plate yield limit 360MPa
Plate width (mm) Rolled diameter (mm) Pre-bent plate thickness (mm)2.5 times plate thickness straight edge Symmetrical plate thickness (mm) Pre-bent plate thickness (mm)2.5 times plate thickness straight edge Symmetrical plate thickness (mm)
2500 4000 189 223 148 184
2500 5000 196 231 153 190
2500 6000 202 238 158 196
2500 8000 210 246 164 203
