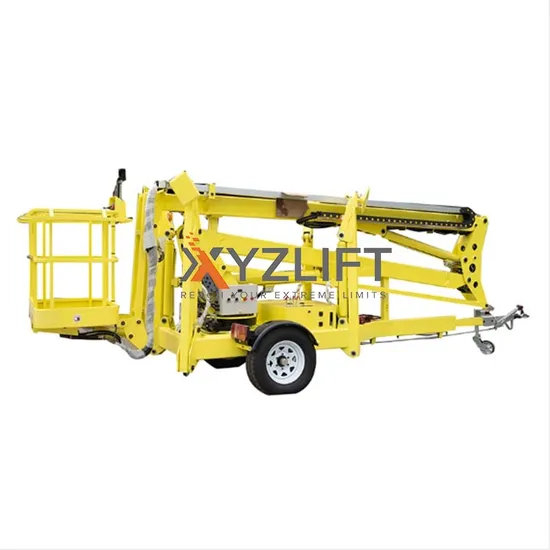

10m 12m 14m 16m 18m 20m Boom Lift Aerial Work Lift Platform

Product Description

10m 12m 14m 16m 18m 20m Boom Lift Aerial Work Lift Platform Product Description
Towable boom lifts, also known as trailer-mounted boom lift, cherry picker, spider lift, are versatile pieces of equipment used in various industries for their ability to provide elevated work platforms. Towable boom lift has the characteristics of convenient movement, simple operation, large working surface and good balance performance. In the case of uneven roads, it can be supported by four legs at the same time. Choose the construction equipment you need, and come to me for more detailed data.
Technical Data
Please note: We can customize the lift's height, cabin dimensions, and body width to meet your specific requirements.

Model	XYZTBL-10	XYZTBL-12	XYZTBL-14	XYZTBL-16	XYZTBL-18	XYZTBL-20
Platform height	10m	12m	14m	16m	18m	20m
Lift capacity	200kg	200kg	200kg	200kg	200kg	200kg
Platform size Width*Depth	900*700mm	900*700mm	900*700mm	900*700mm	900*700mm	900*700mm
Overall width	1700mm	1700mm	1700mm	1700mm	1800mm	1900mm
Overall height	2100mm	2100mm	2100mm	2200mm	2250mm	2250mm
Overall length	6300mm	7300mm	6650mm	6800mm	76000mm	6900mm
Working radius	5500mm	6500mm	8500mm	10500mm	11000mm	11000mm
Tyre	Rubber tyre 700mm	Rubber tyre 700mm	Rubber tyre 700mm	Rubber tyre 700mm	Rubber tyre 700mm	Rubber tyre 700mm
Turning radius	4.3m	4.8m	4.5m	4.6m	5.7m	4.7m
Weight	1950kg	2100kg	2250kg	2350kg	3600kg	4500kg
Max towing speed	100km/h	100km/h	100km/h	100km/h	100km/h	100km/h
Lift power	AC	AC	AC	AC	AC	AC
Rotation	360 degree continue rotation

Details Show
Power
AC Power only-Standard
24V DC Batteries only
Diesel engine only
Petrol engine only
AC+Diesel engine
AC+petrol engine
AC+battery
Battery+Diesel
Battery+Petro
Options for Better Experience
Conversion to Crawler-Mounted Boom Lift: Perfect for work on muddy surfaces, this modification swaps the standard wheeled base for a crawler-mounted design, improving both stability and maneuverability on difficult terrains.
One-Button Automatic Outrigger Leveling: This enhancement streamlines the setup of the towable boom lift, greatly boosting work efficiency by enabling rapid and easy leveling with just the push of a button.
Traction Drive System: This system allows for straightforward adjustments and movements of the towable boom lift, enhancing ease of operation and minimizing the need for manual labor.
Project Show
Our agents around the world can visit to measure and provide free plans.
Warranty
We provide a 5-year warranty on the operational parts of the lift and a 1-year warranty on the electronic components. In case of any defect during the warranty, the company is responsible for free exchanges. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification.
FAQ
How To Buy Towable Boom Lift
Q1.How to Choose the Right Lift Height for a Towable Boom Lift
A1.To select the appropriate lift height for a towable boom lift, it's crucial to understand the specific tasksyou'l be undertaking and the maximum height you may encounter. The working height of a towableboom lift is the height you can reach while standing on the platform plus an additional 2 meters.
Therefore, working height = platform height + 2m.
Q2.What is the Working Radius of a Towable Boom Lift, and How Do I Choose the Right One?
A2.The working radius of a towable boom lift refers to its horizontal reach. lf the lift cannot be positioneddirectly next to the work area, the working radius becomes a critical factor. Consider a larger workingradius if the work area is inaccessible or requires a significant reach. For specialized requirements.custom solutions are available.
Q3. How to Choose the Right Power Source for a Towable Boom Lift?
A3.The choice of power source for a towable boom lift depends on the work environment:
1).Indoor work or outdoor areas with access to electricity: Electric or battery-powered options aresuitable.
2).Outdoor work: Diesel or gasoline engines are preferable.
3).Mixed indoor and outdoor use: Dual-power options (Electric + Diesel or Electric + Gasoline) areavailable.
Q4.What is the Price Difference Between Different Power Sources for Towable Boom Lifts?
A4.Standard towable boom lifts with a single power source (electric, gasoline, or diesel) are similarlypriced. Dual-power models (Electric + Diesel or Electric + Gasoline are also same price. Battery.powered lifts may incur additional costs for the batteries.
Q5.Can Towable Boom Lifts Be Customized?
A5.Yes, as one of the pioneering manufacturers of towable boom lifts, we offer customization including.
1).Explosion-proof models.
2).Insulated work platforms.
3).Models suited for narrow workspaces
4).Heavy load capacity towable bom lift
5).A variety of color options.
Q6.Can Towable Boom Lifts Operate on Uneven Ground?
A6.Towable boom lifts can operate on solid, uneven ground. They are equipped with four adjustableoutriggers to ensure balance during operation.

---
