Plastic Water Pipe HDPE PE PPR Hose PVC UPVC Water Irrigation Electric Wire Dwc Corrugated Pipe Tube Extrusion Production Making Machine Line Factory Price

Product Description

Product Description

Sunrise Machinery Co., Ltd. is a professional manufacturer for kinds of plastic pipe machines, PVC profile and panel machines, and plastic recycling machines, etc. We produce PVC UPVC CPVC pipe production line and HDPE PP PPR pipe production line in different diameters.
The plastic pipe machine could produce pipes for water supply, water drainage, Gas supply and conduit wiring application, etc.

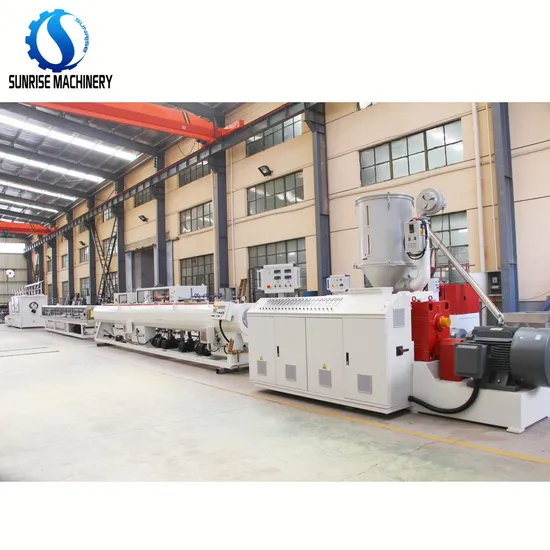

PVC & UPVC Pipe Production Line is used to produce PVC & UPVC Pipe with different diameter and wall thickness which is widely used in agricultural water supply, drainage pipe, electric conduit pipe and so on.
Feature of Machines:
1- PLC control, high degree of automation
2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining
Produce process:
PVC powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker
Technical Parameters:

Diameter(mm)	16-40dual	20-63dual	20-63	75-200	160-315	315-630
Extruder mode	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5	37	18.5	37	55	110
Max lineal speed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
Max capacity (kg/h)	120	250	80-120	180-250	300-450	500-600

Main Composition of PVC Pipe Making Machine:

No.	Item	Quantity
1	SJSZ series conical twin screw extruder (Equipped with automatic feeding unit)	one set
2	Die and Mold	One set
3	Vacuum calibration water tank	One set
4	Haul-off unit	One set
5	Cutter Unit	One set
6	Stacker	One set
	Optional auxiliary machines in production for your choice
A	Printer	one set
B	Mixer	one set
C	Crusher	one set
D	Milling machine	one set
5	Belling machine	one set

FOR HDPE PPR pipe machines, we use high efficient single screw extruder to produce. The process is mixing PE / PPR material with color, and feed into extruder for production. There are color line extruder to mark 1 or 2 or 4 color lines according to your requirement. For different diameters, we will use different model machines.
Services:
1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has one year guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer has any problem during the operation, we will offer technical solutions.

Detailed Photos
1. Conical Twin Screw Extruder for PVC Pipe Production:
PLC computer control available
2. High Effeicient Sinlge Screw Extruder (L/D 33:1 or 38:1) for PE PPR Pipe Production:
3. Color Line Extruder for HDPE PPR PVC Pipe color line marking
4. Plastic Pipe Mold PVC PE pipe

5. Vacuum Calibration Tank ( for PVC HDPE PPR pipe)

6. Cooling Tank for HDPE PPR and Larger Diameter PVC pipe
(made of stainless steel SUS304 with quality glass)
7.Haul off Machine for PVC HDPE PPR pipe
( 2 claw, 3 claw, 4 claw, 6 claw, 8 claw , 10 claw caterpillaer available)

8. Cutting Machines (Planetary Cutter and Non dust cutter)
9. Stacker for PVC HDPE PPR pipe and Winding Machine for HDPE (20-110mm)
10. Laser Printer for printing pipe info
FOR PVC pipe production, you also need high speed mixer, belling machine and other auxiliary machines. We could offer a full package to set us a new pipe factory.
Double Wall Corrugated Pipe Line
Single Wall Corrugated Pipe Machines
Welcome to contact us for more details.
Customers
Loading Containers:
Welcome to contact us to find suitable plastic pipe machines for you.
FAQ:1.Are you manufacturer or trading company?
We are manufacturer for plastic pipe machines, PVC profile machines and plastic recycling machines.
2.Why choose us?
We have 15 years experience for producing plastic machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.
3.Delivery time:
40-60 working days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
12 month
7. How to send an inquiry?
Plase tell us what kind of plastic pipe and diameters you want to produce, we will prepare proposal for you.
You just tell me what machine you want,let us do the rest work: 1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to
our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Installation and commissioning;
(2) Training your workers;
(3) Maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.

---
