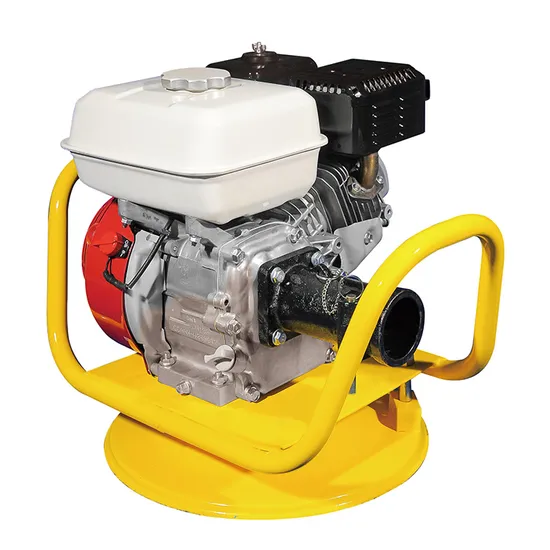

Bison Eccentric Concrete Vibrator High Speed High Frequency Poker Vibrator

Product Description

BISON Eccentric Concrete Vibrator High Speed High Frequency Product Description
√ Bison Power internal concrete vibrators HP-VN, using the pendulum principle, 3000 rpm of the drive unit translates via the flexible shaft into
12,000 vibrations per minute in the poker head.
√ The low output speed ensures high reliability and extended service life and can be used between two types of drive units (interchangeable) BS-VN,
with 7 standard poker diameters.
√ Video technical support, Online support, Spare parts.
Product Parameters

TAIZHOU BISON INDUSTRY MACHINERY CO., LTD Concrete Vibrator
Concrete Vibrator	Model Name:	BS-VH32	BS-VH38	BS-VH45	BS-VH50	BS-VH60
	Vibration Head (mm):	32*470	38*470	45*470	50*470	60*470
	Vibration /min:	9800~ 12000
	Shaft roate speed:	3000-3600
	Amplitude (m/min):	0.9	1.2	1.3	1.6	2.0
	Flexible shaft (m):	6	6	6	6	6
	Weight of hose:	16	18	19	20	21
	Packing size of hose(mm):	870(L)*660(W)*80(H)
	Join type:	Pin type / Butterfly type
	Engine model:	Honda engine GX160
	Fuel tank capacity (L):	3.6
	Starting system:	Recoil starter
Packing	Gross Weight:	22kg
	Dimension(mm)	515*425*445mm

Hot Sale

Company Profile

Certifications

Exhibition
Q: Are you a trading company or manufacturer?
A: We are a factory.
Q: How can I get your catalog?
A: Send an inquiry to us and tell us u need our catalog, our sales will reply to u within 6 hours with the catalog.
Q: Can I get a sample to check the quality before mass order?
A: Yes, you can.Welcome to place a sample order to check our quality. I do believe our high-quality products will bring
more orders for you from your clients!
Q: Any guarantee for your products?
A: Our company's culture is"Quality is our culture!"All of our products with 12 monthly GUARANTEE, never need to
worry about the after-sale service, we will always be here to support your business!
Q: Any certifications for your products?
A: Our products can pass CE, ROHS, Euro 5, and EMC certifications, so they can be sold worldwide safely!
Q: Do u support OEM/ODM service?
A: Yes, we do support, we have an experienced R&D team, so welcome to place OEM/ODM orders to us.
Q: At last, about the payment terms, any convenient and safe way for our buyers?
A: We have PayPal, MIC pay, L/C, T/T payment terms options, do business with us, your money will be safe, your
the business will be safe!
Why Choose BISON?
1. Your One-stop sourcing option! offers a complete range of mechanical products including generators, water pumps, engines and high pressure washers, Light Construction Equipment, Power Tool and more. Can help you reduce time and energy consumption.
2. Better understand what you need, what you care about, not only to provide competitive prices of quality products, OEM services to satisfy yours and strictly control the entire production process to ensure on-time delivery. Super professional service, from pre-sale, sale to after-sales service. We are not only working partners but also friends and family.
3. At present, the company has passed Euro V certification, CE certification and iso9001 management system certification. At the same time, it is a new manufacturing factory that continuously innovates and applies to product manufacturing.

---
