PP PE ABS PS Pet PVC Sheet Crust Foam Board Make Making Extruder Extruding Machine

Product Description

PVC/WPC Crust Foam Board production line
PP/PE/ABS/PS/PET sheet/board production line
Final product
PP Board:Widely used in chemical industry, food industry, anticorrosive, purification industry, environmental protection equipment manufacturing industry, etc.
PE Board:Widely used in chemical industry, electric power and other industries. HDPE board can also be used as engineering plastics used in machinery, chemical equipment, etc.
ABS Board:Widely used in home appliances, electronics, packaging, medical equipment and other fields.
QINGDAO TRUSTY PLASTIC MACHINE COMPANY
My company is a professional plastic sheet/board machine manufacturer.
If you want my company quotation,please email me.
Please check the following questios.
1)Raw material that you want to use
2)About the final product width and thickness
3)About capacity
Technical Parameter

Type	TPM-1200	TPM-1500	TPM-2000
Raw Material	PP,PE,ABS	PP,PE,ABS	PP,PE,ABS
Width	1220mm	1500mm	2000mm
Thickness	3-30mm	3-30mm	3-30mm
Extruder Type	SJ-120x35	SJ-150x35	SJ-170x35
Output	350kg/h	500Kg/h	800kg

Extruder Three roller Calender Main configurations

Feeder	• To feed material into extruder;
Extruder	• World famous brand electrical component such as Siemens, ABB etc; • High torque gearbox with adopts NSK/S KF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Flat die	• Coat hanger type • 5CrNiMo steel material • Apply to sheet, board
Three roller Calender	• Compacting driving by hydraulic • Rollers are driven separately and speed control by frequency inverter or servo motor • Temperature controller is include • Independent operation panel for easy operation • Equipped with lamination device
Cooling bracket and haul off	•Multi-group cooling rollers; •Speed control by frequency inverter • Compacting driving by pneumatic • With adopts wear-resisting rubber roller
Cutting system	• Plate shearer ensuing flat and chip free cutting
Stacker	• Stainless steel 304 as touching material

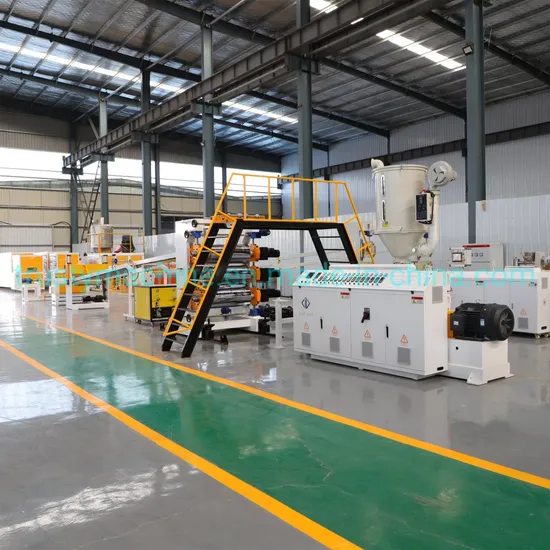

Machine Photos
About US
Qingdao Trusty Plastic Machinery Co., Ltd. is a professional plastic extrusion equipment
manufacturer integrating design, research and development, production and sales.
The company's main products are rich, the production technology is mature, and the after-sales service is guaranteed. Products are sold at home and abroad, such as: Brazil, Chile, Mexico, the Philippines, Italy, Russia, Pakistan, Vietnam, India, Algeria, Egypt and other countries.
Our company is located in Qingdao, one of the plastic machinery bases in China, where the railway, sea transportation, aviation and other transportation systems are very complete. And it is one of the regions with rapid economic development in the coastal cities.The advantaged geographical conditions have provided great convenience for the development of the company's trade.
Our company's main products are:
PVC door and window profile production line
WPC wood-plastic profile production line
PVC wall panel production line
PVC/PE/PPR/PP pipe production line
PP/PE/ABS board/sheet production line
PVC/WPC crust foam board production line
PE/PP/PC hollow sheet production line
PVC roof tile production line
PP/PET packing belt production line
According to customers' needs, to achieve diversified processing customization.
Over the years, the company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.

---
