Chinese Vertical Lathe/Vertical Turret Lathe/Vertical Lathe Machine Price

Product Description

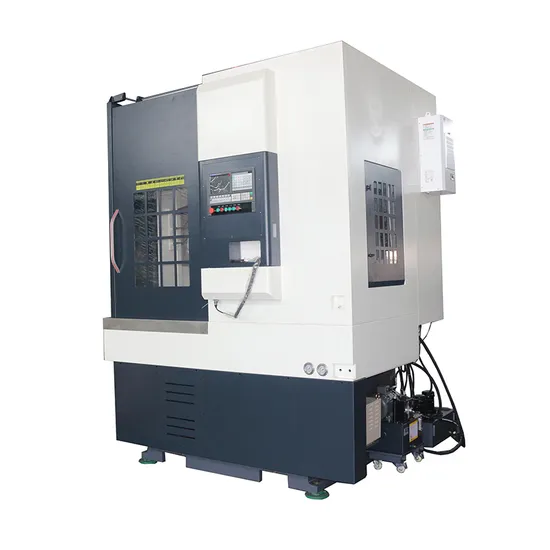

Chinese vertical lathe/vertical turret lathe/vertical lathe machine price
Product Description
In order to meet the needs of the market, we independently developed the vertical cnc lathe. Based on years of experience in the manufacture, sales and combined with users' feedback, we have carried out a variety of user-friendly designs.

Main Features:
1. The base, column and sliding seat are all made of high-grade gray cast iron and have been tempered. Ensure that the machine tool has high strength and precision stability for long-term use.
2. The machine adopts roller-type linear slides. It has super high rigidity and heavy load capacity. The positioning accuracy,load-carrying capacity of vertical and horizontal feed movement are greatly improved.
3. The spindle pulley of the machine tool and the spindle CNC servo motor pulley are connected by a belt, and can be configured with 18.5Kw or 22Kw motors,continuously variable speed, and wide speed range. It can meet the different requirements of the spindle speed for rough machining
and finishing of parts.
4. The vertical and horizontal feeds are controlled by the servo motor automatically. There are protective devices in both directions, and a load balancing mechanism is installed in the vertical direction, which reduces the load of the lead screw and greatly extends the life cycle of the lead screw.
Main Features: 5. Both ends of the ball screw in the vertical and horizontal directions of the machine tool are supported by special screw bearings, which greatly improves and guarantees the machining accuracy of the machine tool's parts.
6. The machine tool adopts an electric lubricating oil pump to automatically lubricate each part in an intermittent manner to ensure the lubrication of each guide rail pair and ball screw pair, which can prolong the service life of each movement pair. efficiency.
7. The tool post adopts horizontal or vertical multi-station CNC tool post, which has short tool change time and greatly improves work.
8. The upper end of the spindle can be equipped with a disc table or hydraulic chuck according to user requirements. The lower end of the main shaft can be equipped with a rotary oil cylinder, which is divided into single piston and double piston. The single pistoncylinder can be used to control the tooling to compress the workpiece, or to control the hydraulic chuck. With dual-piston cylinders, one cylinder
controls the hydraulic chuck, and the other cylinder controls the tooling to compress the workpiece.

Product Parameters

Specification	UNIT	VT45	VT65	VT75
Max.Swing diameter	mm	500	650	700
Spindle speed	rpm	100~1500	100~1000	100~1000
Cutting feed speed	mm/min	0.1~1000	0.1~1000	0.1~1000
Vertical moving distance of tool holder	mm	550	600	700
Tool rest horizontal moving distance	mm	400	450	700
Longitudinal fast moving speed	mm/min	16000	16000	16000
Transverse fast moving speed	mm/min	16000	16000	16000
Tool holder form		horizontal	horizontal	horizontal
Diameter of hydraulic chuck	mm	400/500	400/500	630
Main motor power	Kw	15	18.5	22
positioning accuracy	mm	±0.008	±0.008	±0.008
Re -positioning accuracy	mm	±0.004	±0.004	±0.008
Machine size	mm	2000x1900x3030	2000x1900x3030	2200x1900x3200

Application

The machine especially suitable for processing wheel hub, brake hubs and other types of short shaft, pump body, disc parts.Suitable for multi-variety, small and medium-sized batch parts processing characteristics, is the automobile, agricultural machinery, engineering machinery, electrical machinery and other industries parts processing preferred equipment.
Packaging & Shipping


Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.

Our Services


Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Company Profile

Certifications
Zhongyou has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
