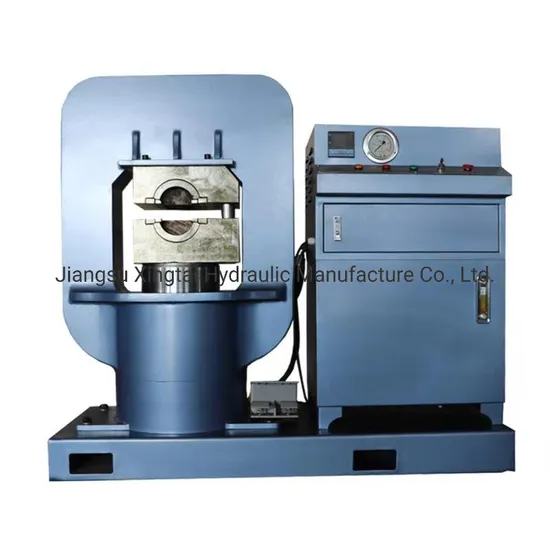

Hydraulic Steel Wire Rope Sling Pressing Machine

Product Description

Product Description
Xingtai wire rope press machines are used to make pressed wire rope sling. Xingtai wire rope press machine have exported to many countries, UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Nigeria, Russia, Botswana and so on.
Product Parameters

Mode No.	GT-650T
Max wire rope diameter in multi-pressing (mm)	Φ48
Power (KW)	5.5
Max working pressure (Mpa)	56Mpa
Max piston movement (mm)	160
The up speed of piston (mm/sec)	4.5
The down speed of piston (mm/sec)	8
Total length (mm)	1650
Total width (mm)	650
Total height (mm)	1600
Net weight (kg)	2500
Accessory	Seals,key,use manual
Package	Standard export package
Video	Yes
Delivery time	30 days
Features
1. Overall basket design, small size, high strength, good concentricity, pressed slings with smooth surface
2. Stress uniform, high strength, long service life.
3. The cylinder is with higher sealing performance, safe, reliable and durable
4. Round mold design and automatic positioning is easy to change different molds.
5. Piston can be stopped any position.
How to operate
1. Fix mould, tight the bolts on the left of both tool set;
2. Adjust pressure according pressure table shows on machine;
3. Put sleeve/ferrule with wire rope on the middle of mould vertically;
4. Operate pedal rise switch, the piston will rise and rising pilot lamp lights; Auto-stop when reach adjusted presure; operate down switch and take out pressed wire rope;
After-sales services
24 hours around the clock & 12 months warranty
Life-long maintenance service for the product

Detailed Photos
Packaging & Shipping
FAQ
1. Do you have CE certificate?
Yes, we have.
2. Can I check the quality of your machine before order?
Yes, you may come our factory to check, or you may ask the third party to check, or you may contact our
customers in your country or the country near you.
3. I am not sure which model is better for us, could you make suggestion?
We may offer you two or three models for your selection. And we will recommend which model is suitable for you.
4. How can I see the work video of your machine?
We have some videos on youtube, you may check.
If you have other question please do feel free to contact us.

---
