Green Environmental Protection Tongguan Meat Pie Intelligentization Production Line

Product Description

PRODUCTION OVERVIEW

TONGGUAN MEAT PIE PRODUCTION LINE

TongGuan Meat Production Line is an automated or semi-automated production line that integrates multiple processes from raw material preparation, pie crust making, spiced meat processing to finished product assembly. Production process: mixing one pressing one waking up one dough conveying one dough shaping one calendering to find thin one pulling wide - all flowers one brushing oil one rolling one dividing the dough one arranging the plate one waking up one laminating and pressing the cake one quick freezing; Characteristics: the dough is pressed, rolled out, and pulled wide, and it is gradually getting thinner and thinner, which doesn't damage the gluten organization, doesn't heat up, and maintains the handmade flavor. Automatic noodle delivery system saves labor and reduces cost; automatic oil brushing system applies oil evenly and improves the sense of product hierarchy.

Name	TongGuan Meat Pie Production Line
Condition	New
Advantage	Easy Operation;Saving energy
Speed	Adjustable
Size	Different
Weight	Different
Material	Stainless Steel
Automatic Grade	Automatic
Appearance	Different
Safety Standard	Qualified
Protective Measure	YES
Emergency Stop Function	YES
Sustainability Attribute	Recyclable
Warranty Period	1 Year

PRODUCTION DETAILS

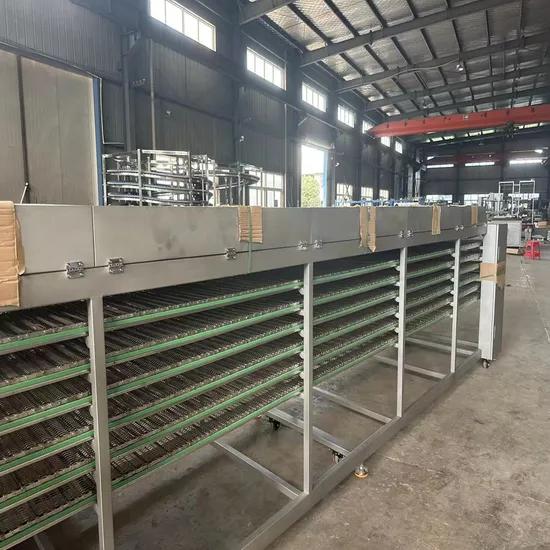

One Line With Nine Ferment Dough

Capacity	3000
Overal dimensions	7279×1520×4000mm
Power	2 kw
Time	10-15 min

Fully Automatic Dough Elevator

Voltage	380V 50HZ
Overal Dimensions	1850×1150×2500 mm
Power	1.1 KW
Weight	150 KG

Dough Lump Spacer

Overal dimensions	1447×1151×11 00 mm
Power	0.95 kw
Pressure range	100 kg

One Out Four Laminating Machine

Equipment size	2500x1000x1400 mm
Power	1.15 kw
Capacity	4500-6000 pcs/h
Pessure	0.8-1.0 MPa
Production diameter	120-140 mm
Production weight	60-150 g/pcs

OX Tongue Pastry Laminating Machine

Equipment size	2500x960x1400 mm
Power	1.15 kw
Capacity	1500-2500 pcs/h
Pessure	0.8-1.0 MPa
Production diameter	80×220 mm
Production weight	80-150 g/pcs

Circular Film Laminating Machine

Equipment size	3400x1040x1730 mm
Power	2.5 kw
Capacity	2500-4000 pcs/h
Pessure	0.8-1.0 MPa
Production diameter	80-110 mm
Production weight	80-150 g/pcs

Main Features
1. Dough Mixer: used to mix flour, water, oil and other raw materials into a uniform dough. The equipment has precise mixing ratio and mixing speed control to ensure the quality of the dough is stable.
2. Dough Press: press the mixed dough into thin sheets for subsequent processing. The tablet press usually adopts a high-precision roll design to ensure uniform thickness and smooth surface.
3. Forming Machine: The pressed sheet is cut into round or square slices suitable for making burritos. The molding machine can be adjusted according to product specifications to meet the needs of different sizes.
4. Baking or Frying Equipment: bake or fry the molded sheet to make it crispy and delicious. These devices usually have temperature and time control functions to ensure the stability of product quality.
5. Filling Machine: Used to fill a variety of fillings (such as meat, vegetables, cheese, etc.) into the dough. The filling machine can be customized according to customer needs to adapt to the needs of different fillings and filling methods.
6. Burrito Forming Machine: Roll the filling pieces into the shape of burrito. The equipment has efficient rolling capability and precise dimensional control to ensure the appearance and taste of the product.
7. Packaging Machine: The production of good burrito packaging for storage and sales. Packaging machines can be customized according to product specifications and packaging materials to meet different market needs.

EXHIBITION
CERTIFICATIONS


PACKAGING & SHIPPING


BUSINESS PARTNER

COMPANY PROFILE
Anhui Jinke Foodstuff Machinery Co., Ltd.

Anhui Jinke Foodstuff Machinery Co., Ltd. is located in Hefei, the famous science and technology capital of China. Since its establishment in 2008, the company has been relying on the rich local high-tech talents and R&D resources to rise rapidly. We have grown into a professional bakery and food machinery solution provider serving Northeast Asia, Central Asia, Middle East, Eastern Europe and East Africa. We are committed to become the most professional bakery equipment and technical services company in the world. Anhui Jinke Foodstuff Machinery Co., Ltd. always focuses on the development of bakery industry with a global vision, and we constantly carry out strict control on the quality of products, and our products enter the European market, Central Asia, the Middle East, Africa, and Southeast Asia market countries and regions, and our customers are all over the world. The company relies on advanced equipment, accurate testing, senior development team, experienced senior technicians and passionate after-sales operation team. Guided by the enterprise spirit of "quality-oriented, service first", Anhui Jinke Foodstuff Machinery Co., Ltd. will, as always, focus on the research and innovation of the product technology and service of the production line of cake food machinary.
FAQ
Q1.How can I get a quotation?
A1.Send your requirements and attach your email ,your contract number,your company name & website,Our pre-sale engineer will confirm and reply you soon.
Q2.What's your payment term?
A2.Normally our payment term is 30% deposit and clear the balance before shipping .
Q3.What kind of payment method you is available?
A3.TT is available.
Q4.what's your lead time?
A4.Usually we will finish producing within 30 days after the deposit confirmed. But it is also depend on the feature of the order .If you need customization service,the producing time will be 60 days .
Q5.What kind of shipping method is available?
A5.By sea is better.
Q6.How do you control the quality?
A6.We are opening more than 16 years up to now,and we have a professional QA & QC team.
Q7.What's your machine guarantee?
A7.One year for the whole production line.

---
