Good Quality Barite Hydraulic Cone Crusher Suppliers Shanbao Single Cylinder Hydraulic Cone Crusher Machine

Product Description

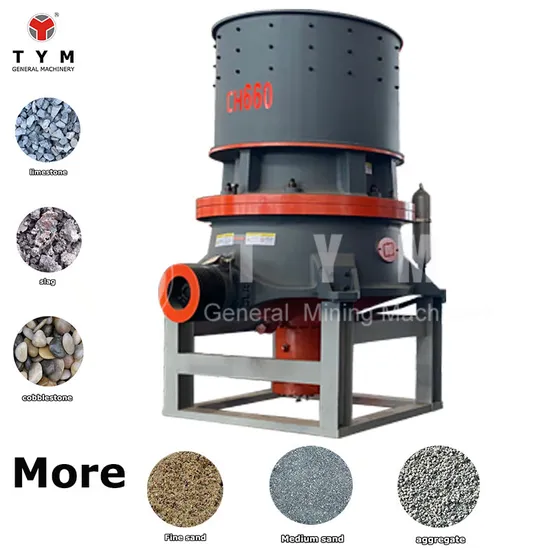

Product Description Single Cylinder Hydraulic Cone Crusher Introduction
Single cylinder hydraulic cone crusher can break or crush all kinds of medium hard or harder ore formining, chemical building, materials and other industrial sectors. This kind of machine has the features of big crushing ratio,continuous operating, even granularity, automated hydraulic clearing system, high capacity, simple structure and low operating cost, suited perfectly for middle and fine crushing.
Working Principle
When the single-cylinder hydraulic cone crusher (single-cylinder cone crusher) works, the motor drives the pinion gear of the crusher, the pinion gear drives the large gear, and the large gear assembly (large gear, large gear holder, eccentric steel bushing) drives the eccentric bushing assembly (eccentric cylinder bushing, eccentric copper bushing) and the main shaft assembly (main shaft, inner cone, inner cone liner) with the theoretical vertical line as the center, and the main shaft assembly in the eccentric copper bushing with the main shaft The spindle assembly can realize the rotation by the center line of the spindle.
When the machine is running empty, the eccentric bushing assembly "holds" the main shaft assembly and rotates along with the large gear.
When the material is added to the crushing chamber, the main shaft assembly (main shaft, inner cone) slowly rotates inside the eccentric bushing under the resistance of the material. The trajectory of the inner cone appears to swing back and forth in the crushing chamber while slowly rotating, and the material is crushed by the swinging inner cone.
The connection between the support sleeve and the frame body is pressed by the hydraulic cylinder. When unbreakable objects such as metal blocks fall into the crusher, the moving cone of the single cylinder is held up by the hydraulic piston at the bottom, which plays the role of discharge port adjustment and over-iron protection, repeatedly rising and falling to exclude blocked ore.
Advantage 1. The dual optimization of the body and cavity, combined with high-quality components, increases the equipment's throughput and production efficiency. 2. The multi chamber design comprehensively meets the needs of two-stage crushing, three-stage crushing, and four-stage crushing. 3. Equipped with a fully automatic control system, the operation is highly automated and easier for users to operate. 4. The integrated design of hydraulic station and lubrication station saves space and enhances equipment stability.
Production Line The material is evenly and continuously conveyed to the jaw crusher by the vibrating feeder, and after being crushed by the jaw crusher, it enters the impact crusher or cone crusher for secondary crushing. Then the crushed materials enter the vibrating screen for sorting, and finally the finished products are output by belt conveyor.
If you would like a quote for the entire line, please click here to contact us.
Application
Our stone Single cylinder hydraulic cone crusher can greatly reduce the operating costs. Single cylinder hydraulic cone crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal,manganese ore, iron ore, emery, fused aluminum,oxide,fused calcium carbide, lime stone, quartz, alloys. And the Single cylinder hydraulic cone crusher is widely used in mining, metallurgical industry,building material, highway and chemical industry.
Technical parameters

Model	Cavity type	Max feed size(mm)	Feed opening(mm)	Capacity (t/h)	Power (kw)	Maximum service weight (kg)	Weight(kg)
DP100S	M	170	19-41	85-215	90	2800	7350
DP100	M	105	10-22	55-100	90	2000	5700
	MF	85	8-16	45-90
	EF	32	6-16	40-75
DP430S	EC	360	25-48	126-327	132	5200	12000
	C	300	22-48	108-301
	MC	235	19-48	91-275
DP430	EC	185	13-38	69-208	132	3000	9200
	C	145	13-38	66-197
	MC	115	10-32	57-184
	M	90	10-32	64-162
	MF	75	8-25	61-126
	F	50	6-25	48-105
	EF	35	5-5.6(80%)	70-90
DP440S	EC	450	35-54	267-601	220	8200	19300
	C	400	29-51	225-511
	MC	300	25-51	195-486
DP440	EC	215	16-44	114-395	220	4800	14300
	C	175	13-44	101-378
	MC	140	13-38	97-328
	M	110	13-38	117-339
	MF	85	10-32	114-299
	F	70	8-32	90-236
	EF	38	6-7.5(80%)	100-125
DP660S	EC	560	41-76	349-1050	315	16800	35700
	C	500	38-70	318-892
DP660	EC	270	16-51	117-662	315	8600	26800
	CX	235	16-51	174-654
	C	215	16-51	171-643
	MC	175	16-44	162-552
	M	135	16-38	197-502
	MF	115	13-38	192-451
	F	90	13-38	195-401
	EF	65	13-22	211-298
DP870	EC	300	22-71	448-1512	500	13200	49800
	C	240	19-71	406-1464
	MC	195	19-71	380-1373
	M	155	19-71	400-1372
	MF	100	16-51	379-942
	F	90	13-44	357-912
	EF	80	10-44	280-775

If you would like to know more about our products, please contact us by clicking here. Our Customers Site Customize solutions according to customer requirements!
We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
This is our stone production line in Bolivian! The customer's requirements:
Raw material: grinite, capacity: 500 tons/hour, finished products: 0-10mm, 10-20mm, 20-30mm.
Equipment configuration: ZSW6000X1300 vibrating feeder, PE1000x1200 jaw crusher, 2 sets HP500 cone crusher, 4 sets 4YZS2470 vibrating screen. Company Information Since in 2004, Zhengzhou General Mining Machinery Co.,Ltd has been the professional manufacturer of Grinding Mill, crushers and sand making machines,etc. TYM is committed to helping more users around the world to obtain higher profits and faster return on value. Our main products are European Version Grinding Mill, Raymond Grinding Mill, High Pressure Suspension Roller Mill, Micro-powder Grinding Mill, Jaw Crushers, Impact Crushers, Hammer Crusher, Compound Crushers, Ball Mill, nine series of products with more than 30 kinds of specifications.
Our factory
Our factory covers an area of 120,000 square meters and manufactures TYM brand Mining Machinery,has passed international ISO:9001, GOST and CE certification.
Packing & Shipping The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely. All the machine will be packaged by plastic film.
Certifications
Our Services Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
Pre-sale services:
(1) Device model choice.(2) According to customer's special requirements, design and manufacture of products.(3) Training technical personnel for clients.(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program.
Sale services:
We will send technicians to you for guiding the equipment installation and commissioning and staff training.
Sales tracking :
(1) product acceptance.(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.(2) On-site training of operators.(3) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

---
