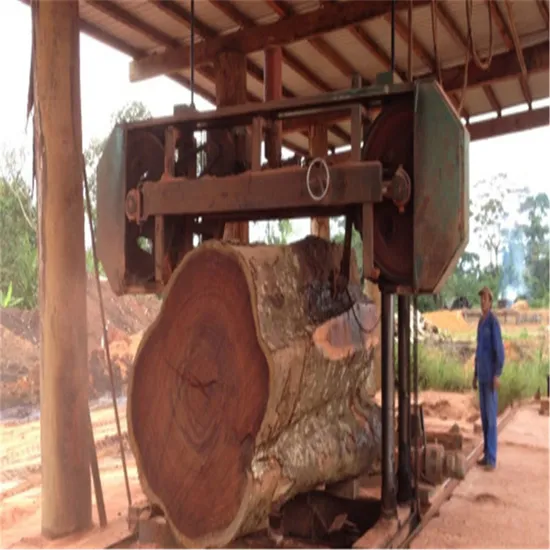

Heavy Duty Horizontal Hard Big Wood Log Cutting Bandsaw Sawmill

Product Description

Product Parameters
Heavy Duty Saw Mill Machine
Popular and highly trusted in
Africa:Angola,Cameroon,Ethiopia,Egypt,IvoryCoast,Gambia,Ghana,Kenya,Mauritius,Mozambique,Namibia,
Sierra Leone,South Africa,Tanzania,Uganda,Zambia,Zimbabwe
Asia:Bahrain,Bhutan,Burma,India,Indonesia,Israel,Malaysia,Philippine,Sri Lanka,South Korea,Singapore,
Thailand,Uzbekistan,Vietnam.
Europea:Bulgaria,Bosinia and Herzegovina,Belarus,Finland,France,Holland,Hungary,Italy,Greece,Spain,
Sweden,Turkey,UK,
Oceania :Australia,Fiji,New Zealand,Papua New Guinea,
America :Brazil,Canada,Nicaragua,Peru,Panama,USA

Model	WS1200	WS1500	WS2000	WS2500
Max Sawing Width (MM)	1200	1500	2000	2500
Saw Wheel Diameter (MM)	1000	1000	1070	1070
Max Sawing Thickness (MM)	450	450	450	450
Band Saw Blade Length (MM)	7700	8600	9300	10500
Max Sawing Length (Meters)	6	6	6	6
Saw Wheel Motor (KW)	30	37	45	55
Touch Screen Up/Down Sizing Motor(KW)	2.2	2.2	2.2	2.2
Forward/Backward Motor (KW)	3	3	3	3
Blade Tension Motor (KW)	1.5	1.5	1.5	1.5

Related Machines
Electric Horizontal Sawmill

Model	WS700E	WS1000E	WS1300E	WS1600E
Max. Sawing Wood Width	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	700MM	700MM	700MM	700MM
Sawing Wood Thickness	2-300MM	2-300MM	2-300MM	2-300MM
Sawing Wood Length	1300-4500MM (Rail Length:5800MM)
Main Motor Power	15KW	18.5KW	22KW	30KW
Up/Down Sizing	1.5KW	1.5KW	1.5KW	1.5KW
Total Weight (KG)	900	1100	1300	1500

Diesel Horizontal Sawmill

Model	WS700D	WS1000D	WS1300D	WS1600D
Max Sawing Width	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	700MM	700MM	700MM	700MM
Sawing Thickness	10-300MM	10-300MM	10-300MM	10-300MM
Sawing Wood Length	1300-4500MM(Rail Length:5800MM)
Diesel Engine	22HP	22HP	25HP	27HP
Saw Blade Length	5500MM	6100MM	6600MM	7100MM
Total Weight (KG)	1100	1200	1300	1500

Mini Portable Sawmill

Model	WS23	WS26	WS31	WS36
Max sawing Width	580MM	660MM	780MM	900MM
Max Sawing Length	3000MM	3000MM	3000MM	3000MM
Saw Wheel	410MM	480MM	480MM	580MM
Petrol/Diesel /Electric	8HP/7.5KW	8HP/7.5KW	15HP/7.5KW	15HP/11KW
Saw Blade	3660*35	3750*35	4070*35	4100*35

Hydraulic Automatic Sawmill
Model	WS700A		WS1000A	WS1300A
Max Sawing Wood Width	700MM		1000MM	1300MM
Saw Wheel Diameter	700mm		700mm	700mm
Max Sawing Wood Thickness	300mm		300mm	300mm
Standard Sawing Wood Length	4500mm		4500mm	4500mm
Electric Motor Power	22kw		30kw	30kw
Up/Down Motor	1.5KW		1.5KW	1.5KW
Forward/Backward Motor	2.2KW		2.2KW	2.2KW
Saw Blade Width	27-75MM		27-75MM	27-75MM

Hydraulic Diesel Sawmill
Model	WSH1000D		WSH1300G
Max Sawing Wood Width	1000mm		1300mm
Saw Wheel Diameter	700mm		700mm
Max Sawing Wood Thickness	300mm		300mm
Standard Sawing Wood Length	4000mm		4000mm
Engine Power	22HP Diesel Double Cylinder		35HP Petrol Double Cylinder
Up/Down	Hydraulic		Hydraulic
Saw Blade Thickness	27-75mm		27-75mm
Machine Length	5800mm		5800mm
Weight	2500kg		2500kg

Heavy Duty Hydraulic Band Sawmill

Model	WSHDH1200	WSHDH1500	WSHDH1700
Max Sawing Wood Width	1200mm	1500mm	1700mm
Saw Wheel Diameter	1000mm	1070mm	1070mm
Max Sawing Wood Thickness	400mm	400mm	400mm
Standard Sawing Wood Length	4500mm	4500mm	4500mm
Electric Motor Power	37kw	45kw	45kw
Up/Down Electric Motor	2.2kw	2.2kw	2.2kw
Forward/Backward Electric Motor	3kw	3kw	3kw
Band Saw Blade Width	125-150mm	125-150mm	125-150mm
Band Saw Blade Tension	Electric
Machine Length	7000mm	7000mm	7000mm
Weight	7000kg	8500kg	9000kg

Company Profile
Specialize in research & development, production, sales of Woodworking Machines SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our machines including
Hydraulic Heavy Duty Horizontal Sawmill
Hydraulic Portable Horizontal Sawmill
Multiple Heads Horizontal Resaw Band Saws
Heavy Duty Horizontal Sawmill
Portable Horizontal Sawmill
Thin Cutting Horizontal Resaw
Mini Portable Sawmill
Twin Vertical Band Sawmill
Vertical Band Sawmill
Log Carriage (Manual,Electric,Pneumatic,Hydraulic)
Band Saw Blade
Band Saw Blade (Sharpener,Butt Welder,Roller)
Brazing Machine (Manual/Automatic Stellite/Tungsten)
Blade Grinding Machine(Manual/Automatic ,Side/Angle)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
