Product Details
Product Description
Product Description
Introducing the All-in-One Wire Coiling and Twist Tie Machine: The Epitome of Efficiency in Cable Bundling

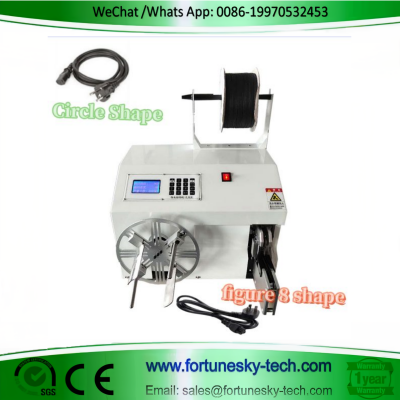

The HWN-Series Wire Coiling and Twist Tie Machine revolutionizes your wire bundling experience with integrated coiling, cable tie application, and automatic cutting and twisting functionalities.
Key Features:
Precision Coiling with Stepper Motors: Experience exceptional control over the coiling process thanks to the machine's precision stepper motors.
User-Friendly PLC Touch Screen Control: The intuitive PLC touch screen interface allows for effortless cable tie length control, automatic cutting, and twisting adjustments.
Adjustable Winding Speed and Cycles: Tailor the winding speed and cycle parameters to match your specific cable bundling requirements.
Versatile Wire Compatibility: This all-in-one machine is suitable for processing various transmission wires, including AC/DC power cords, USB data cables, video cables, HDMI cables, and more.
Streamlined Operation:
Simply load the cable and secure it at the designated starting point.
Set the desired cable tie length, winding speed, and cycle parameters using the user-friendly touch screen interface.
Initiate the process. The machine will automatically coil the cable, apply the cable tie at the predefined length, cut the tie, and twist it securely for a clean and professional finish.
HWN-Series Model Variations:
The HWN-Series comes in three models to accommodate varying cable tie length and bundling diameter requirements.
HWN-18-45: Ideal for cable tie lengths of 75-140mm and bundle diameters of 18-45mm.
HWN40-80: Perfect for cable tie lengths of 200-300mm and bundle diameters of 40-80mm.
HWN-530: Suitable for cable tie lengths of 65-130mm and bundle diameters of 5-30mm.
Technical Specifications:
Model No. (reference): HWN-Series (HWN-18-45, HWN40-80, HWN-530)
Bundle Diameter:
HWN-18-45: 18-45 mm
HWN40-80: 40-80 mm
HWN-530: 5-30 mm
Cable Tie Length:
HWN-18-45: 75-140 mm
HWN40-80: 200-300 mm
HWN-530: 65-130 mm
Cable Tie Speed: 0.6 seconds/tie (all models)
Voltage: AC220V / 60Hz (all models)
Power:
HWN-18-45 & HWN40-80: <220W
HWN-530: 25 Kg
Weight:
HWN-18-45: 42 Kg
HWN40-80: 50 Kg
HWN-530: 440 x 610 x 420 mm (HWN-530)
The HWN-Series Wire Coiling and Twist Tie Machine is a perfect solution for businesses seeking to streamline their cable bundling operations. Its precision engineering, user-friendly interface, adjustable settings, and versatility make it a valuable asset for any production line.
>>
