Small Factory Cabinet Manufacturer Double High Speed Edge Trimming and Banding Machine

Product Description

Product Parameters

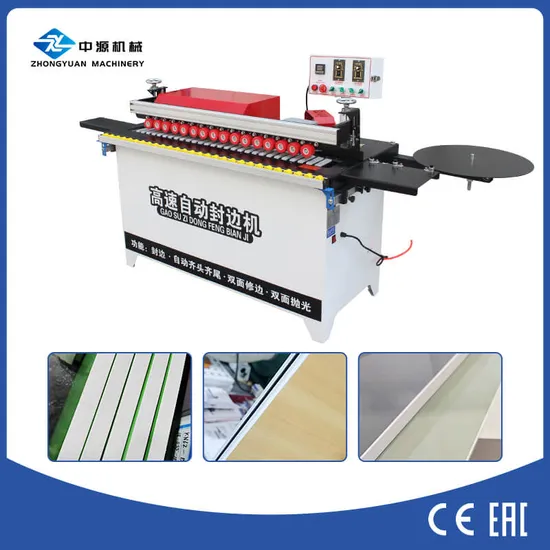

High-speed Automatic Edge Banding Machine:
This product is automatically flush with the end, comes with vacuuming, using solid round bar guide and silicone conveyor belt, to improve the life of the motor, does not hurt the plate, increased the function of the double row of wheels to seal the narrow plate without pressure.
1.Control Panel:Clearly marked, equipped with temperature controller, speed regulator and other independent control buttons, easy to operate.
2. Limiting device:U-shaped limit groove prevents the edge banding strip from deflecting and regressing, ensuring smooth edge banding.
3. Micro switch:Automatic belt breaking device, touch the limit switch to start edge sealing, leave the limit switch to automatically break the belt.
4.High quality cutter:Upgraded cutter assembly, ultra-fast response, ensuring vertical cutting accuracy, double-column balanced cutter stability,tight structure, good cutting and smoothing effect.
5. Pressure beam adjustment handle:Precise scale, handwheel adjustment is convenient and accurate, and can be adjusted according to the thickness of the board.

Model	802
Voltage	220V
Rated power	4KW
Weight	150KG
Sealing height	5-50mm
Trimming height	0-50mm
Standard size	1300*600*950mm

Detailed Photos

Product Application

Company Profile
Certifications

FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.

---
