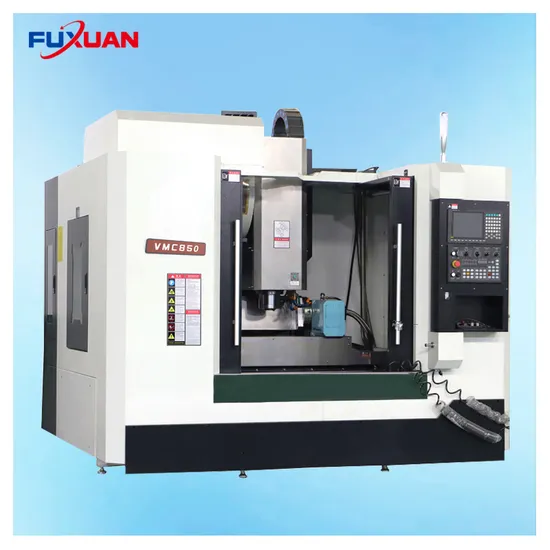

Small-Lathe Vmc850 CNC Milling Machine for Metal Siemens 808d CNC-Control Machining Center

Product Description

small lathe vmc850 cnc milling machine for metal siemens 808d cnc control machining center
Product Description
Product Parameters
Features:
Taiwan spindle Germany R+W coupling Taiwan ball screw and locking nut Automatic lubrication system
Taiwan pressure cylinder Chip conveyor at optional
Japanese NSK bearing High quality resin sand
Product main technical parameters:

Specifications	Units	VMC850
Table size	mm	1000x500
X axis travel	mm	800
Y axis travel	mm	500
Z axis travel	mm	500
Max. worktable load	kg	800
T slot(number-width-pitch)		5-18x100
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT40
Main motor power	kw	7.5/11
X/Y/Z rapid traverse speed	m/min	24/24/20 (Optional:48/48/36 )
Cutting feed speed	m/min	1-8000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	525
Distance between spindle nose and worktable surface	mm	130-630
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24
Max. tool diameter	mm	φ78 (Adjacent)/ φ120(Apart)
Max.tool weight	kg	8
Machine weight	kg	5600
Overall dimension	mm	2600X2300X2800

https://focus-machiner.en.made-in-china.com/product-group/RofALOqVCIke/Machining-Center-catalog-1.html Detailed Photos
Company Profile
FAQ
Q1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . Q2: Where is our factory located? How can I visit there? A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone, Tengzhou City, Shandong Province, China. Q3. What is your trade terms? A : FOB, CFR and CIF all acceptable. Q4: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the machine, we will send machine photo and video for you to confirm. Q5: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set ) Q6.the warranty? The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for you within 48 hours.

---
