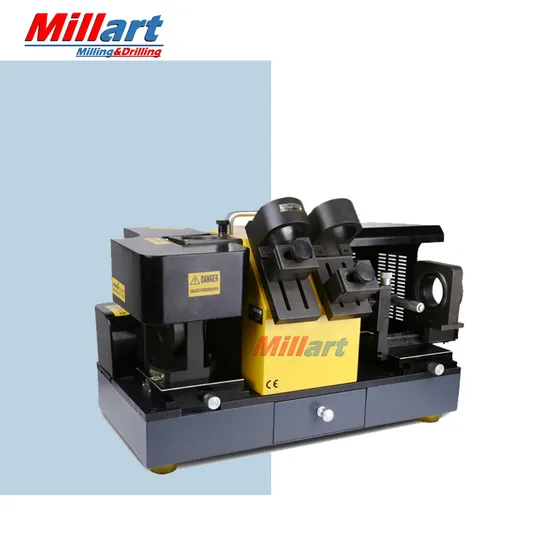

Mr-X6 Mr-X6a Mr-X7 End Mill Re-Sharpener, Tool Grinding Machine Mill Sharpener

Product Description

Product description:
Technical parameter :
MR-X6
1.Independent developing X6 includes the function of X3, and can also grind peripheral cutting edge.
2. Portable end mill grinder can grind end mill of 2-flute, 3-flute, 4-flute .
3. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
4. With diamond grinding wheel, only one piece can complete all procedures. It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the carbide material, Optional CBN grinding wheel for the HSS material.
MR-X6A
1. Portable end mill grinder can grind two flute, three flute, four flute and six flute ( size should be bigger than Ф12mm). Choosing can grind five flute
2. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
3. With diamond grinding wheel, only one piece can complete all procedures. It can be equipped directly with an accurate angle and long service life.
4. MR-X6A can grind both face and side of end mill.
MR-X7
Portable end mill grinder, focus on grinding spiral end mill's side flute.
Precise and rapid grinding, easy operation without skills .
It can grind 2-flute,3-flute,4-flute end mill, and you can grind cutting edge using tungsten bar.
Equipped with diamond grinding wheel, precise angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

Model	MR-X6	MR-X6A	MR-X7
Mill diameter:	Φ4-Φ14	Φ4-Φ20mm	Φ12-Φ30mm
Point angle	0°-5°	0°-5°	0°-5°
Motor	220V/180W	220V/180W	220V/250W
Speed	5300rpm	4400rpm	4400rpm
Dimension	41×25×30cm	62x25x32cm	60*32*40cm
Weight	22kg	27kg	50KG
