Packaging Machinery Multi-Function Packing Machines Napkin Paper Towel Facial Tissue Bundling Packing Machine

Product Description

Max. Work Speed:	20Pack/min
Total Power:	20.6KW
Pack Range(mm):	Length (L): 240-450 Width (W): 120-420 Height (H): 90-270

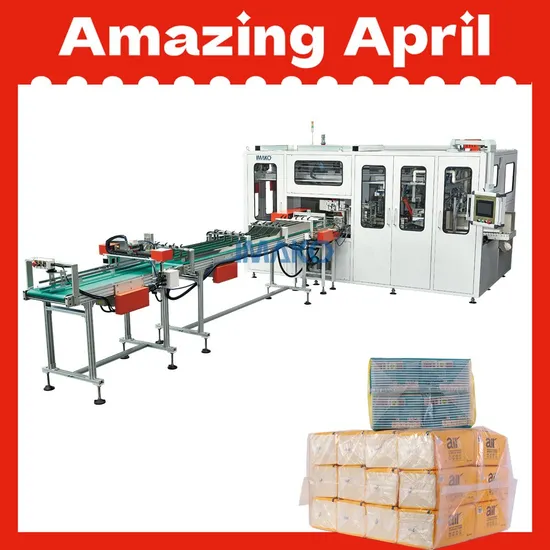

Product Description Automatic Packing Bundler Machine
A, Main machine
A. Using PLC and servo motors. Drive rolls, belts, fetching bags, position, in-feed bags and sealing
Portion should be driven by servo motors. Product transfer, feeding, pushing, bag fetching, bag opening,
Trim collection are full automatic.Softpacking Baler Machine
1) Automatically set facial packs into 1 column or 2 columns (1-5 packs for each column) by touch
Screen, then push them into bundler.
2) Into bag: Push prefab bags by Vacuum belt and open them with sucker, then pusher push facial
Packs into bags.
3) Sealing: Gusset format, heat sealing and sealing edge is straight and ho burrs. This part has its
Own temperature control system.
4) Trim: To trim collector with vacuum system
5) Man-machine interface: For easy operation, set parameters in the operating panel., which have
Keep and debugging functions.
B. Alarm system: Automatically show faults easy for maintain.
C. Monitor: Monitor bags and product and machine should be stop when no bags or product
D. Prefab bags storing: 2 stores and the up is continuous.;
E. Bagging: 2 columns or 1 column, vertical direction to bag, right tightness and beautiful
Appearance.
F. Machine should be automatically bag transmission and bundling and stop and alarm when bag
Missing.Facial Tissue Bundler Packing
G. Bundling format: 3, 4, 5, 6, 8, 10, 12 packs for each bundle, adjustable
H. Machine should be equipped with overload protection and machine stop at overload and could
Reset manually after overload and let servo system be back to initial phase (home slowly).
I. Safety control-machine should stop in 2-3 seconds after pressing Emergency Stop Button;
Emergency Stop should cut off electricity, compressed air, pump, etc. Product Parameters

TP-B35TE main parameter configuration
Specification/Model/ ltem	TP-B35TE
Scope of application	Single packed tissue to bundle packing	Packing styles
Feeding mode	Horizontal feeding
Packing slyles (Layer x row x column)	One Layer 1x(1-3x(3-5) Two layers 2x(2-3x(3-5) ihree layers 3x(2-3x3-5)	According to single pack size
Design speed	25 packs/minute
Stable speed	≤20 packs/minute	Relate to product size
Bag install mode	Dual bag racks
Bag rack storage Qty	≤600 pcs prebags
Single packed tissue range(mm)	L120-210 / W90-110/H60-100

Machine weight (KG)	6500
Bag type	CPP,PE	Thickness:0.05mm
Compressed air(MPA)	Press 0.6mpa flow 30Lmin
Power supply	380V/50HZ
Machine movement contrcl mode	16 shafts servo positioning control	Servo control
Machine main transmission mode	Servo motors drive,belts transmission
Machine color and craft	Deep grey.static spray plaint craft
Bag type	Same to manually packing	Air hole≤2.5mm
Gusset forming mode	Vacuum mold forming

Company Profile IMAKO is a company entirely focused on the manufacture of automated packaging equipment for household paper industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper convertors to solve their tissue paper production and toilet paper packaging needs. To become a global packaging machine manufacturer, we also provide full automatic toilet paper production line, tissue napkin production line, handkerchief production line, hand towel production line,with rewinder, folder, cutter, single packer, bundling packing machine, case packing machine and robot palletizer. we also provide packaging solutions for personal care products like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine are built to deliver easy operation, high productivity, quick size changeover and simple maintenance.
Our mission is to innovate our technology to meet the future market changes and challenges, constinuously improve efficiency to help customers solve production problems. From design, production, solutions to services, we strive to provide you with satisfactory experience and to become your long-term partner. We remember that without the trust of our customers, we would not be here we are today.
After Sales Service Paymentterm:T/T,30%deposit and 70% before delivery.
Delivery:60 days upon receiving deposit.
Guarantee:One year.(The following problems are excluded from the warranty:due to accidents,misuse,misapplication,storagedamage,negligence,or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
After service:If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
Besides buyer need paid for the technician USD50/person/day as salary when ourTechnician going to your country.
