High Strength Aluminum Alloy Conveyor Belt Splicing Jointing Vulcanizing Press

Product Description

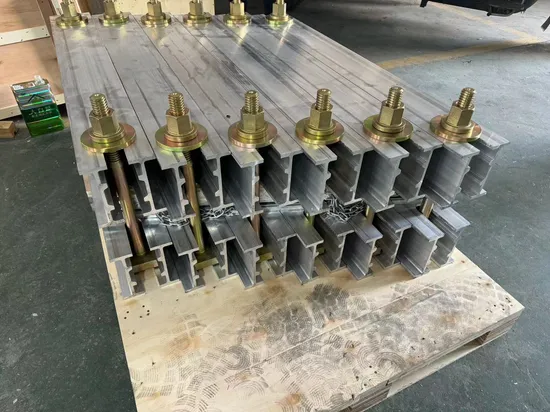

High Strength Aluminum Alloy Conveyor Belt Splicing Jointing Vulcanizing Press
1. The rubber vulcanizing machine has light weight; About one person can move it. It consists of the following components: Rack / Pressure Bracket, fastening device,
sizing block, screw, nut, gasket, high-pressure hose, hydraulic test pump, thermal baffle, on the heating plate, secondary cable, electric cabinet, cables, down the heating plate, Suppress water bag. 2. The material of main machine components made of aluminum alloy, light weight, easy installation and removal, easy to handle. 3. Suppress water bag(its function is increase pressure) technology has reached international advanced level, it has following characters: (1)Light weight, it is the 1/4 weight of the ordinary.
(2)Large expansion amplitude.
(3)Uniform pressure and the pressure can reach 3.0MPa.
(4)No water leakage and long life.
4. The electric cabinet can automatic rise temperature, automatic control temperature and calculate time. Product Paramenters

No.	SPEC	Rating Voltage (V)	Power Frequency (HZ)	Motor Power (KW)	Applied Belt Width (mm)
1	ZLJ-650	380V/660V	50HZ	8.7	650
2	ZLJ-800	380V/660V	50HZ	10.6	800
3	ZLJ-1000	380V/660V	50HZ	13.5	1000
4	ZLJ-1200	380V/660V	50HZ	15.4	1200
5	ZLJ-1400	380V/660V	50HZ	18.2	1400
6	ZLJ-1600	380V/660V	50HZ	20.1	1600
7	ZLJ-1800	380V/660V	50HZ	22.1	1800

---
