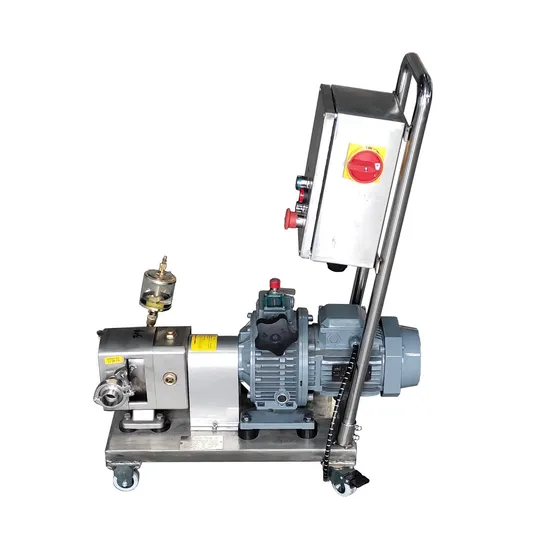

Sanitary Stainless Steel CE Certificated Lobe Pump

Product Description

Product Description Butterfly lobe pump, Sanitary rotor pump
Operation Principle
Rotor pump is also named colloid pump, three-lobe pump, sole pump, etc. When the 2
simultaneous reverse rotating rotors (with 2-4 gears) revolve, it produces suction force
at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor
housing into many smaller parts and revolve in the sequence of a-b-c-d. When it revolves
to position a, only housing | is filled with medium, when it revolves to position b, housing B
encloses medium, and finally it goes to position d, then housing A, B and || are interlinked
and the medium is transported to the outlet. As this process is repeated, medium (material)
is transported continuously.
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers,
pumps, etc for many years. We can design the products according to your special request.
OEM is welcome too.

Model	(L)Capacity / per centum Rotate	(RPA) Speed	(L/H) Flow	(KW) Power
BLS-3	3L	200-500	300-800	0.55
BLS-6	6L	200-500	650-1600	0.75
BLS-8	8L	200-500	850-2160	1.5
BLS-12	12L	200-500	1300-3200	2.2
BLS-20	20L	200-500	2100-5400	3
BLS-30	30L	200-400	3200-6400	4
BLS-36	36L	200-400	3800-7600	4
BLS-52	52L	200-400	5600-11000	5.5
BLS-66	66L	200-400	7100-14000	7.5
BLS-78	78L	200-400	9000-18000	7.5
BLS-100	100L	200-400	11000-22000	11
BLS-135	135L	200-400	15000-30000	15
BLS-160	160L	200-400	17000-34000	18.5
BLS-200	200L	200-400	21600-43000	22

---
