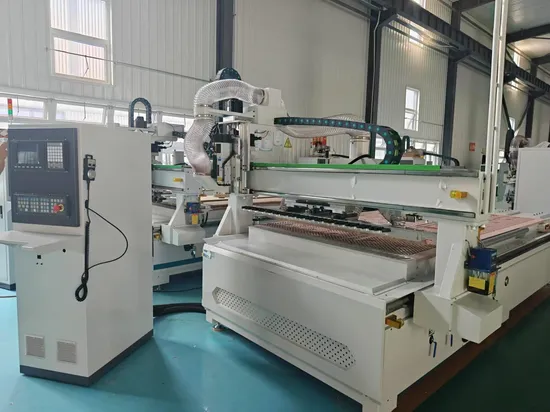

3D and 3 Axis CNC Heavy Duty CNC Router Engraving Wood Cutting and Drilling Machine

Product Description

CNC Woodworking Engraving and Cutting Machine
Specification

Model	A-510L
Working area	1500mm X 3000mm X 200mm
Table design	Double-layer PVC ( one zone)
Linear rail Guide	Linear guide 25mm / Taiwan
X-Y movement	Rack and pinion/ Taiwan
X-Y drive reducer	Planetary type gear reducer /Taiwan
Z movement	Ball screw drive/25mm/Taiwan
Z speed reduce	Z axis direct drive by motor
Spindle	ISO-30 / 9KW / Italy
ATC	ISO-30 / drum type / 8 positions
Cooling system	Heat exchanger
Drive motors	Delta servo motor 750W
Software	Be/CAM-Standard (optional)
Pneumatic rod	3 Nos. Adjustable ( X: 2 Y:1 )
Controls	Taiwan Syntec Controller
Vacuum pump	Chinese Becker Pump 5.5KW
software	Type 3 / ArtCAM
Pakcage	Plywood box

(1) Moving bridge nesting table, belongs to economic and simple machine design.
(2) UA series is for small quantity and multi-style processing. UM series is for multi spindles quantity production.
(3) Direct and fast processing on big boards, there is no need to cut into pieces first.
(4) Automatic tool changer (A) and manual tool changer (M) are optional for complicated processing.
(5) It takes a small area, because the working table doesn't move, the tools move up and down, forward and back.
(6) Italian HSD air cooling spindle with high frequency, 9KW power, ISO-30
(7) Centralized automatic lubrication system.
(8) Automatic backlash preloading mechanism.
(9) Refrigeration and air conditioning electric control box.
(10)Italian CNC control system
(11)Tool automatic compensation system
(12) Centralized dust collection control system
Industry categories: furniture industry, advertising engraving, yacht and ship, stationery gifts, etc.
Processing materials: artificial board, plexiglass, engineering plastics, thermoplastic material, etc.

---
