Product Description
Product Description

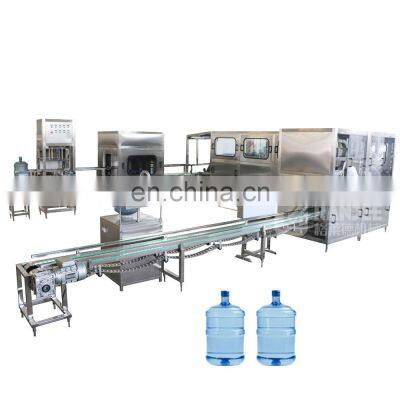

5 Gallon Water Bottling Plant / Purified Water Filling Line / Machine Product Description Brief introduction : 1) This 5 gallon water filling line specially produces 3&5 gallons barreled drinking water.(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.(5) This 5 gallon bottling line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.(6) It has features of complete functional, easy operation, and high degree of automation. It is a new kind of 5 gallon barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together. 20L / 5 gallon washing filling capping machine Main technical data:ModelQGF-100QGF-200QGF-300QGF-450QGF-600QGF-900QGF-1200Filling heads12234612Volume3&5 GallonBarrel sizeΦ270*490mmCapacity(b/h)60-100100-240250-300400-450600-800800-9001000-1200Air pressure(MPa)0.4-0.60.4-0.60.4-0.60.4-0.60.60.60.6Air consumption(m³/min)0.370.370.60.811.51.8Motor power(kw)1.381.753.83.87.59.7513.5Rated power(kw)1.381.753.83.87.59.7513.5Rated voltage380V/ 50HZWeight(KG)68080015002100300035004500Detailed ImagesAutomatic decaperAutomatic cap pulling out machine is corollary production equipment specially designed for 5 gallons barrel drinking water filling and production line.It is compact, high working efficiency and stable and reliable, high degree of automation, it is the machine electrical Trinity corollary equipment for 5 gallon barrel automatic water production line.Automatic bottle interior and exterior brushing machine:Automatic barrel external brushing machine is special use for 5 gallon barreled drink water production line. Especially for mineral drink water, can effective remove the deposit and alga materials bring by mineralize on the bottom of the barrel, this machine is under bottom of the barrel, both rinsing the inside and outside the barrel, obvious improve the rinsing efficiency, reduce the second pollution by second manual brushing and fall the labor intensity. Washing part:It has 2 rows and 9 steps washing Water amount of filing: 6T/H Consumption of water: consumption of water 1T/H(disinfection water reuse, water reuse one time)Filling part:Uploading and dropping barrels changed from 45 degree to translatory which is more stable.Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.Capping part:Liquid level difference is controlled in 1cm. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.Light checker and steam heating shrink machine:Inspection light is used for lighting when inspect whether exist sundries in barrel.Heat shrinking machine is consist of water vessel and electric heat up, electric heat up to produce steam.Bottle conveyor system:Including: empty feeding system, plastic chainFull barrel conveyor system, SUS34 materialCompany information Workshop detail Our team Our exhibition Project casesFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
