High Quality Printed Circuit Board with Immersion Gold

Product Description

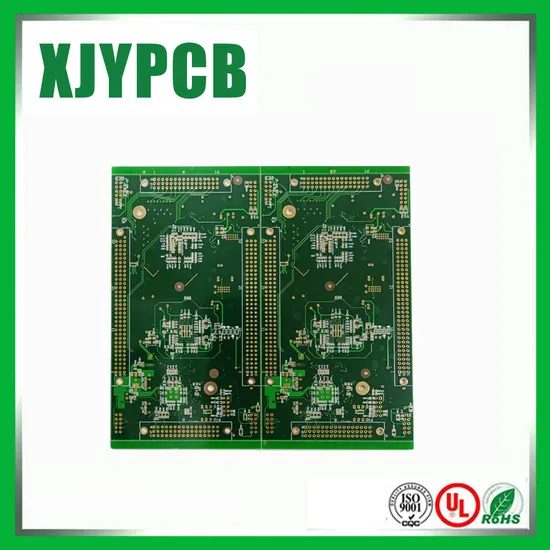

High Quality printed circuit board with Immersion gold
Welcome to our website !!
XinJiaye is able to offer one stop 1 to 24 Layer PCB fabrication,PCB manufacturing,component sourcing,
PCB Assembly,PCBA Test,Reverse engineering service;FPC fabrication, Aluminium base fabrication,
High Frequency Board fabrica-tion.

PCB Board
1) Material: FR4
2) Board thickness: 1.2mm
3) Surface treatment: ENIG
4) Min Hole: 0.15mm
Our Products
PCB Capabilities :
Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
·* Impedance control
·* Solder-ability detection
* Digital metallograghic microscope
·*AOI (Automated Optical Inspection)

Detailed Terms for PCB Manufacturing
---Technical requirement for pcb assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206,0805,0603 components SMT technology
* ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
* PCB Assembly With UL,CE,FCC,Rohs Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.


Delivery Time for PCB board

1) PCB production time: sample: 3-4 days / mass production: within 7 days 2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days
Quotation Requirement and Time:
1) Following specifications are needed for quotation:
a) Base material:
b) Board thickness:
c) Copper thickness:
d) Surface treatment:
e) color of solder mask and silkscreen:
f) Quantity
2) Qutoation within 2 hour after we get the gerber file or pcb file with complete specifications

Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.


Other Service:
A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.
B) We also provide sourcing components , PCB design , PCB copy , PCB drawing , PCB assembly and so on .

Our Superiority

1.High efficiency&Experience
We can provide one stop service.we have grown up into a professional PCB&PCBA manufacturer. We have our own independent research and development department and sophisticated quality control system.
***************************************
2.Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
***************************************
3.Quality
Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.
***************************************
4.Service
We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs around our customers' needs.We take time to listen to your unique business needs and then set out to surpass them.
***************************************

Layer	Sample(days)	Frist Order(days)	Repeat Order(days)
single side	3	7	6
double side	4	8	7
4 layer	7	9	8
6 layer	8	10	9
8 layer	10	12	10
10 layer	12	14	12
Alu-base	5	8	7
FPC 1 /2layer	5	8	8

---
