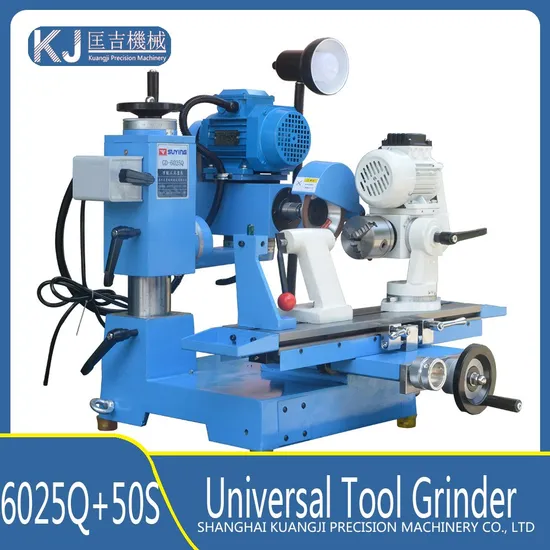

Tool grinding machine has high precision, good rigidity, economic and practical, especially suitable for grinding various small and medium-sized tools, such as reamer, tap, twist drill, reaming drill, various milling cutter, milling cutter head, gear shaper cutter. With the corresponding accessories, it can grind the outer circle, the inner circle and the plane, and also can grind the template and the mold. The use of diamond grinding wheel can be sharpening all kinds of carbide tools.
| Type of machine | GD-6025Q |
| Travel of worktable left and right | 245mm |
| Travel of worktable front and back | 175mm |
| Workbench size | 130*600mm |
| Maximum vertical travel of grinding wheel head | 140mm |
| Angle of rotation of grinding wheel head | 360° |
| Size of grinding wheel | 125*32*32mm(Bowl shaped resin grinding wheel) |
| Distance from lowest point of grinding wheel to table top | 50mm |
| Distance from highest point of grinding wheel to table top | 180mm |
| Speed of grinding wheel | 3600rpm |
| Power/voltage/frequency/current | 550W/220V/380V/50Hz/3.9A |
| Spindle taper of headstock | Mohs3# MT 3# |
| Net weight/gross weight | 130KG/ 150KG |
| Machine dimensions (length x width x height) | 400*430*550mm |
| Package dimensions (length x width x height) | 790*750*730mm |
