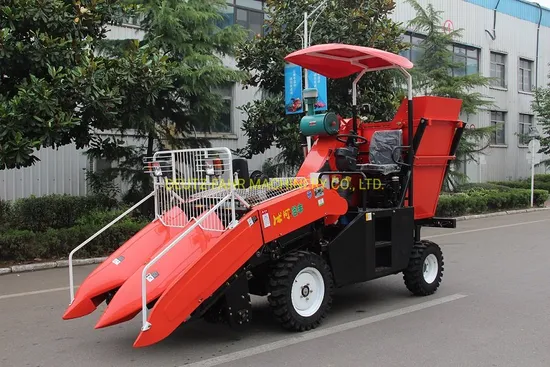

China Hot Sell 2 Rows Corn Combined Harvester

Product Description

Model		4YZP-2	Snapping roll type	horizontal roll type
Name		Corn harvester	Pulling stem roll type	Six edges type
outsize	L(mm)	3980	Total weight (kg)	1680
	W(mm)	1300	Applicative line space (mm)	400-700
	H(mm)	2240	Segment of straw(mm)	≤100
Mating power(kW)		21.86(JD 33); 23.5(LC35)	Minimum ground clearance(mm)	230
Operating speed(km/h)		1-5	Height of cutting crop(mm)	≤150
Production efficiency (hm2/h)		0.15-0.3	Unloading grain way	Hydraulic side turning
Harvesting lines number		2	Cutting knife type	Hobbing type
Peeling net		≥85

4YZP-2 corn harvester is a kind of new production which is produced according to the need of customers and market. This machine can be mated power from 25 hp to 35 hp, it can finish the work of picking, peeling, cutting and returning in one time. This machine has many advantages such as reasonable structure, short body, few fuel consumption, easy operating, and high efficiency. Each index gets to the national standard; it is the best choice for users.
Structural features:
1. Compact structure, good maneuverability, dispense with clearing way by labor. Can finish picking, conveying, peeling, collecting, cutting and returning in one time.
2. Chain type pulling forced gather technology can solve the adaptability problem among multiple lines.
3. Pulling stem roller, picking spike plate type picking device which is simple structural, small volume, light weight, few loss of grain, high efficiency.
4. Self-peeling machine is high efficiency, the same as cutting and returning device.
5. National initiate: peeling machine front mounted, peeling in different lines, prevent blocking.
6. National initiate: self propelled double lines harvester which is lowest and lightest also has complete function.
7. National initiate: front and back wheel track adjustable.
8. National initiate: double connecting rod, slider elevator mechanism to increase the stability of header and height of rise and fall.
9. Fluid-link steering, easy operating.
10. National initiate: grain tank middle mounted, hydraulic unloading to one side.
11. Main gear shift lever is put by the right side of steering wheel, so engaging a gear is comfortable.

---
