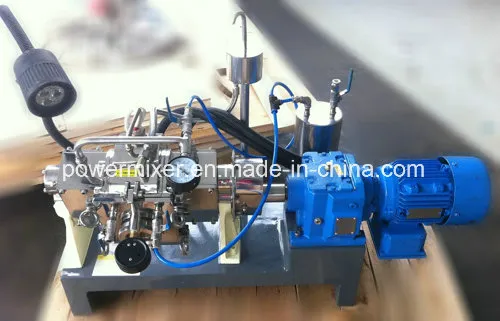

Lab Nhz-1L 1liter Silicone Rubber Vacuum Kneader

Product Description

Lab 1liter silicone rubber vacuum kneader Specifications
G.M.K kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity material.
NHZ series kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity and super high viscosity materials. Vacuum Kneader is widely used in such industries as high viscosity sealant, silicone rubber, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetics, etc.
Kneader temperature adjustment can be done by using heat transfer oil circulation, electric heating, steam and water cooling. It can be made tank body jacket, wallboard jacket, stirrer passing cooling water, passing heat transfer oil and such structures for heating and cooling.
Discharge modes include hydraulic tank turning discharge, screw discharge, bottom discharge and so on. Tank cover open and close are operated by hydraulic. Feeding and discharge are very convenient.
The shaft sealing adopts unique vacuum box balance structure (National patent No. ZL200420087991.3), which is particularly useful in improving system vacuum degree and material purity.
Kneader is comprised of 6 parts of kneading, chassis, transmission system, vacuum system, hydraulic system, electric control system, etc. Kneading part is comprised of tank, stirrers, wallboard and tank cover. Stainless steel is used for parts contacting materials.
Available capacity: 1L, 2L, 5L, 10L, 50L, 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 6000L
Discharge mode: tank turning

MODEL	NOMINAL CAPACITY	VACUUM DEGREE	DISCHARGE MODE	HEATING/COOLING MODE
NHZ-1L	1L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-2L	2L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-5L	5L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-10L	10L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-50L	50L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-100L	000L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-200L	200L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-300L	300L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-500L	500L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-1000L	1000L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-2000L	2000L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling
NHZ-3000L	3000L	-0.098MPa	Hydraulic Tank Turning/ Screw Discharge	Electric, steam heating / oil, water cooling

---
