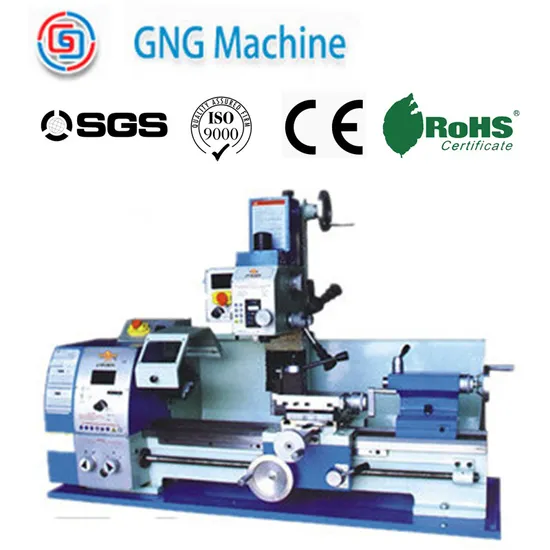

Electric Mini Mill Drill Combination Lathe Machine

Product Description

Min.Order Quantity:1 Set/Sets
Supply Ability:100 Set/Sets per Month
Port:Shanghai
Payment Terms:T/T
Quick Details
Condition:New
Type:Horizontal
CNC or Not:Normal
Automatic Grade:Manual
Max.Swing Diameter:280mm
Place of Origin:Shandong, China (Mainland)
Brand Name:GNG
Model Number: JY280V
Voltage:220V
Power(W):750W
Dimension(L*W*H):140X71X68cm
Weight:190kgs
Certification:CE
After-sales Service Provided:No overseas service provided
Packaging & Delivery
Packaging Details: 1400x7060x680mm 190kg
Delivery Detail:30-45days
Specifications
Mill drill lathe machine
Distance between centers 700mm
Swing over bed 165mm

Distance between centers	700mm
Swing over bed	280mm
Swing over cross slide	165mm
Width of bed	180mm
Taper of spindle bore	MT4
Spindle bore	26mm
Number of spindle speeds	6/variable speed
Range of spindle speeds	125-2000/50-2000rpm
Range of longitudinal feeds	0.07 -0.20mm /r
Range of inch threads	8-56T. P. I
Range of metric threads	0.4 -3.5mm
Top slide travel	80mm
Cross slide travel	140mm
Tailstock quill travel	80mm
Taper of tailstock quill	MT2
Motor	0.75/1.1KW
Packing size	1400 × 7060 × 680mm
Net weight	190kg

Standard Accessories

Name	QTY
Splash guard	1pc
Chip tray	1pc
Toolbox & tools	1pc

This is our company's main product. This product has been selling well in Europe, North America, Australia and South America for more than ten years. We can adjust the details according to the different needs of our customers.

---
