High Speed Slant Bed Linear Guideway CNC Turning Machine SL340

Product Description

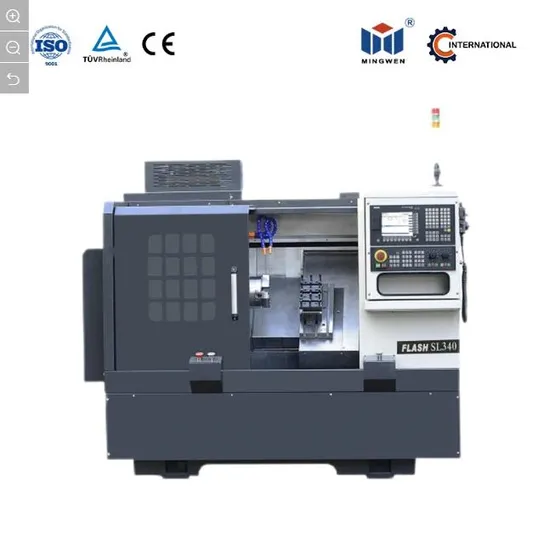

Appearance of the machine
Description and advantages
Featured with a high-quality, heavy cast iron bed. The bed is heat treated and annealed to provide a strong foundation for the SL series of lathes. The single piece 35 degree slant bed design is extremely rigid - able to withstand heavy cutting forces. The SL340 will consistently produce high precision parts parts for the long-term.
Advantages:
---Heat treated and annealed high quality cast iron base-provides strong foundation for the high speed, highly accurate SL Series of CNC Lathes.
---Slant bed also allows for easy operator access and efficient chip removal.
---Quality machine at a value price-High volume production and good QC.
---True slant bed design is highly rigid and withstands heavy cutting forces.
---The combination of high X/Z rapid speeds and gang tool set-up increases productivity tremendously. Highly accurate parts at the lowest cost.
Standard Features

Hydraulic collets
Gang Type Tooling
Ergonomic Operator Panel Design
Automatic Lubrication System
Automatic Coolant System
Built-In Safety Features
Optional Features

Different Chucks and collets
Updated Control Systems
Live Tooling
Bar Feed
Main frame
Parameters

Specification		Unit	SL340
Capacity	Chuck/collet		Hydraulic collet *Hydraulic Chuck 6", *8"
	Max. swing dia. Over bed	mm	Φ420
	Max. length of workpiece	mm	Collet200, *Chuck 170
	Max. swing dia. Over slide	mm	Φ112
Spindle	Spindle bore	mm	Φ48	*Φ55	*Φ62
	Max. dia. Of through hole	mm	Φ40	*Φ46	*Φ52
	Spindle nose		A2-5	*A2-5	*A2-6
	Max. spindle speed	rpm	3000 *4500	*2500 *4500 *5000	*2000 *4000
	Main motor power	kW	3.7/5.5, *5.5/7.5
Axis	X travel	mm	340
	Z travel	mm	200
	X/Z rapid traverse	m/min	28/28
Toolpost	Type		Gang type
	No. of tool stations	No.	4-7
	OD tool and bore tool shank	mm	20*20/Φ25
Structures	Inclined bed degree		35°
	Guideway type		LM
Others	Power capacity	kVA	11
	Dimensions (LxWxH)	mm	2000x1600x1800
	Weight (about)	Kg	2100
Note: "*"means optional, "N/A" means not available, "LM" means linear motion guide way.
