USA Technology Wood Tub Grinder with Diesel Engine

Product Description

Machine Introduction:
The Towable & Hydraulic control Full-automatic Stump Grinder,with compact and reasonable structure, simple operation, high production capacity, wide adaptability of raw materials, high quality of cutting wood chips, safe and reliable, convenient maintenance, is currently a very advanced wood crusher in China.
The diameter of the feed hopper is 3.6 meters in diameter. Therefore, in order to transport and installation, the main engine is equipped with a double axle and single tire, and the rear is equipped with a traction frame and steering tire, which can be towed by trucks or tractors.
The feeding plate drives the adjustment of the chain. The adjustment screw is used to adjust the tightness of the chain. After the first use (about 30 minutes)of the machine, the tightness of the chain should be checked again and the necessary adjustments should be made.
It is directly feed into the hopper by loading machine, directly crush without manual intervention, and the feed hopper is drive by hydraulic motor , and the hydraulic motor is adjusted by manual speed control valve to adjust the speed of feeding. The feed hopper is welded with 18mm thick manganese plate, with strong structural strength and high wear resistance, and the diameter of the feeding port is large enough, and the feeding is more smooth.
The rotor is the main working part of the machine. It has good rigidity and moment of inertia, and has passed the balance experiment.
The spindle and rotor are connected by a locking device. Its structure is compact and reasonable, convenient disassembly and installation, reliable use. The two ends of the spindle are supported by automatic self-aligning roller bearings, and the bearing housing is fixed on the frame.
The rotor is equipped with 10 independent knives with strong wear resistance and high hardness, which are fixed on the knife seat with specially made blade bolts. The knife is firmly pressed on the lower knife plate by pressing the wedge iron. Reasonable structure, easy disassembly.
This machine adopts large power diesel engine, equipped with large capacity diesel tank, no need to configure electrical cabinet power supply.
The hydraulic system is composed of gear pump, hydraulic motor, solenoid directional valve, manual speed regulating valve, oil cylinder, one-way throttle valve, solenoid relief valve, hydraulic tank and other oil circuit components.
During working, the gear pump supplies oil to the hydraulic motor, the solenoid valve can make the feeding plate rotate to complete the feeding and refeeding, and the manual speed control valve can adjust the speed of the feeding plate. The solenoid valve can be used to supply oil to the maximum travel of the oil cylinder, and the maintenance work can be carried out after installing the support top.
Parameters:

ITEM	PARAMETERS	ITEM	PARAMETERS
Model	HX3600 model Mobile	Feed in diameter (mm)	3600
Machine size(mm)	9000×2500×4200	Crushing port diameter(mm)	2350
Transport size(mm)	9000×2500×2950	feed in motor quantity(set)	1
Weight(tons)	21	Discharge motor quantity(set)	1
Capacity per hour	20-35	Discharge belt width(mm)	1150
Max crushing diameter(mm)	2350	Discharge Height(mm)	4200
Main Shaft rotation speed(r/min)	750	Discharge speed(m/min)	140
Diesel engine Power(Hualing Hanma)	408KW(550HP)/1900r/min	Feed in Control mode	Hydraulic control
Rotor diameter(mm)	2350×680	feed in height(mm)	2950
Blade quantity(pieces)	10	Chassis system	Double shafts with Tyres
Blade size(mm)	465×220×20	Tow mode	Dragging mode
Dead blade quantity	2	Hydraulic system	Hydraulic tank volume 400L
Dead blade size(mm)	1100×110×30	Control Mode	Automatic remote control

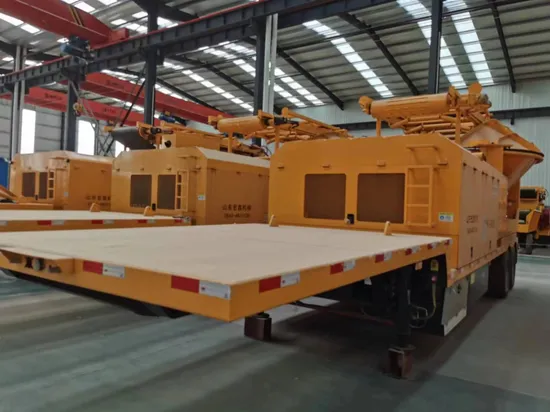

Production workshop
Certificate
Clients visit and Exhibition
Other: You May Have Following Questions:
Q1:Are You Trading Company or Factory?
We,Shandong Hongxin Machinery is a Factory with 21 years experience in Machinery Manufacturing,we provide you competive Factory Price
and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like blade, belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Hongxin Machinery has professional technicians for after-sale service,if customers have problems when machine working,just feel
free to send us the picture or video to show us,we will give you solutions within 24hours.
Q5:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your required raw material.

---
