Chocolate Conche and Refiner Machine 2000kg

Product Description

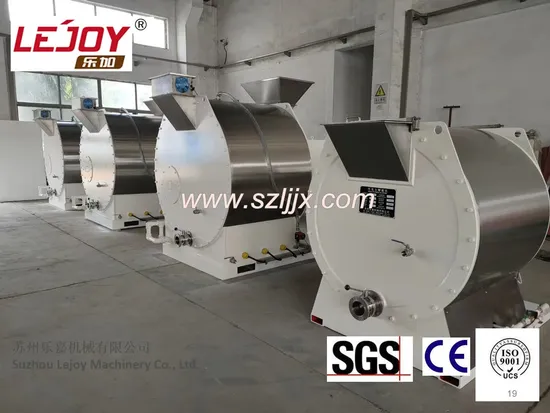

JMJ2000 Chocolate conche and refiner
Main parameter:
Max capacity: 2000L
Fine grinding grain: 20-25um
Fine grinding time: 18-22H
main enginee power: 37KW
Heating power :9 kw
Weight:7000KG
Outside dimension: 3320*2000*1950mm
Features :
Helical gear drive
Electric blade tightening
Electric heating
Equipped with electric box,all wires connected ready
20crMnTi with carburizing treatment for gear
Automatic temperature control
Materials:
Lining cord and scrapers are 65 manganese steel (with heat treatments)
Covering with stainless steel 201
Stainless steel 304 butterfly discharging valve
Equipped with one extractor fan
Chinese brand motor
Chinese brands electrical components
.

Model	JMJ40	JMJ500A	JMJ1000A	JMJ2000A	JMJ3000A
Max capacity(L)	40	500	1000	2000	3000
Fineness(μ m)	25-20	25-20	25-20	25-20	25-20
Duration(h)	7-9	12-18	14-20	18-22	18-22
Main power(kW)	2.2	15	22	37	55
Heating power(kW)	2	6	6	9	9
Machine Weight(kg)	360	2800	3500	6000	8500
Outside dimension(mm)	1100*800*850	2500*1080*1370	2780*1330*1800	3320*2000*1950	4200*2000*1950

---
