6 Axis Drilling and Milling Machine CNC Gun Drilling Equipment for Metal

Product Description

Drilling stands at the very core of machining operations, representing the fundamental process with the widest application spectrum across numerous fields. Traditional drilling equipment such as bench drills, milling machines, and radial drills once restricted laborers to monotonous repetitive tasks without ensuring quality. Challenges like safety, efficiency, and processing limitations have historically influenced the operational landscape for manufacturers and operators alike. However, the advent of the CNC era has revolutionized this scene with the introduction of CNC deep drilling machines. This innovation liberates the workforce from manual constraints, effectively resolving the bottleneck in depth drilling processes. It enables single-pass drilling to achieve the quality of traditional machines while also expanding and enhancing capabilities through automated chip removal, precise CNC positioning, and seamless automatic processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

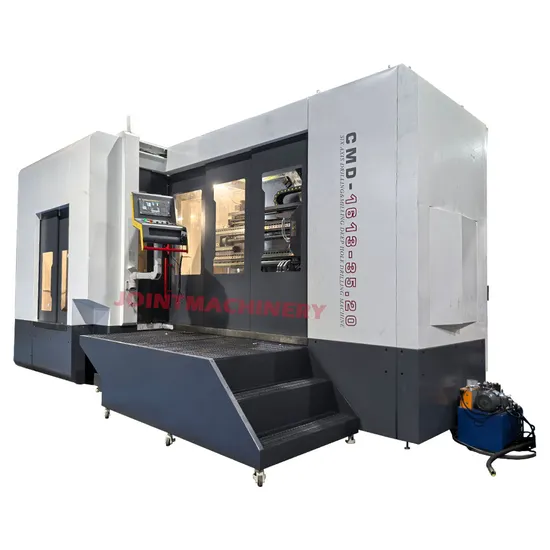

The CMD series six-axis drilling and milling composite machine tool emerges as a versatile multifunctional powerhouse, adept at handling both deep hole drilling and intricate milling tasks. Distinguished by its rotating workbench and swiveling A-axis, this machine exemplifies precision machining of complex components, adeptly handling inclined and double-inclined holes and surfaces. It finds diverse applications across multiple industries, setting a new standard in machining excellence.
Industries such as automotive mold manufacturing, engine cylinder block production, shipbuilding, aerospace, petroleum hydraulics, new energy power, nuclear power, and chemical engineering are just a few of the domains reaping the benefits of this technology. Specialized components like the inclined top rods on molds, double-inclined water paths of hot forming molds, hot runner plates, engine cylinders, rolling rollers, rotary tables, and flywheels highlight the machine's adaptable prowess.
1.Outfitted with the comprehensive FANUC control and servo systems straight from Japan, this machine promises unmatched precision and reliability.
2. The dual closed-loop design of the A and B axes meets exacting standards for precise composite angles, ensuring exceptional machining accuracy.
3. Harness the power of deep hole drilling and milling functions, with the optional single pipe drilling feature available for specialized needs.
4. Experience a wider processing range thanks to the large A-axis swing angle.
5. The fan-shaped disc hard rail design ensures the A-axis swings with stability and reliability, enhancing operational efficiency.
6. Benefit from the anti-deviation load rotating workbench, which guarantees consistent performance under heavy load conditions.
7. Heavy pre-pressed roller precision wire rail and a large-diameter grinding-grade screw rod contribute to robust construction and durability.
8. The dual cycle precision filtration system, coupled with high-pressure cooling chip removal, ensures cleanliness and efficiency.
9. The newly designed fully enclosed cover is not only aesthetically appealing but also exudes a cutting-edge technological presence.
10. Through optimized body design, the machine boasts strong rigidity, high stability, and remarkable seismic resistance, making it a robust choice for demanding environments.
6 Axis Drilling and Milling Machine CNC Gun Drilling Equipment for Metal

Model	Unit	CMD-2016-35.20
Machining Capacity
Drilling diameter of gun drill	mm	3-50
Drilling diameter of single pipe drill	mm	18-65/optional
Max drilling depth of gun drill (W)	mm	1600
Machining Stroke
Left and right of workbench (X)	mm	2000
Sliding table stroke (Y)	mm	1650
Column stroke (Z)	mm	1000
Max drilling depth of gun drill (W)	mm	1600
Swing axis rotation angle (A)	°	Upward 20°, and down to 35°
CNC rotary workbench (B)	°	360
CNC Indexing Table
Max loading capacity	kg	18000
Size (L*W)	mm	1800*1600
Spindle
Spindle taper capacity		BT50
Max spindle speed	rpm/min	4500
Power
Spindle motor	kw	15/18.5
X-axis feed servo motor	N.m	36
Y-axis feed servo motor	N.m	36
Z-axis feed servo motor	N.m	36
W-axis feed servo motor	N.m	36
A-axis feed servo motor	N.m	36
B-axis feed servo motor	N.m	36
Total power	kw	65
Cooling System (Gun Drill)
Coolant pressure range	mpa	2-15
Coolant flow range	L/min	6-85
Size & Weight
Machine size (L*W*H)	mm	9350*5500*5600
Machine weight (About)	kg	25000
System
Control system		Standard:FANUC / Optional:SYNTEC
Milling Ability
Milling range	mm	1600+1000

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in manufacturing and exporting CNC lathe machines, deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Our unwavering commitment to delivering high-quality machines, coupled with exceptional service, ensures that we meet and exceed global customer expectations. With a relentless focus on quality control and enhancement, our offerings align with the highest industry standards. We seamlessly integrate core technologies from Taiwan and Germany with state-of-the-art production equipment and methodologies to ensure superior product quality and reliability. Renowned for their precision, stability, and dependability, our machines adeptly cater to complex and high-demand machining requirements. With a robust global footprint, our products are exported worldwide, earning widespread acclaim and popularity. Our market presence spans Asia, Europe, South America, and North America, fostering long-term partnerships with clients from diverse regions and countries, creating substantial business value together.

---
