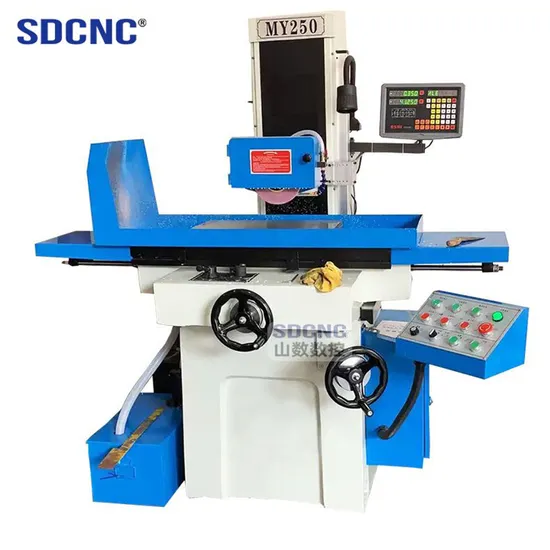

Sdcnc Rotary Round Table Surface Grinder Hydraulic Surface Grinding Machine Tools

Product Description

SPECIFICATIONS

technical specifications		MY250
The grinding wheel size (o. d * w * i. d.)		250*540*420
Maximum longitudinal movement of the working table		500
Maximum horizontal displacement of the working table		200
Maximum distance from working table to spindle center		420
Slide table		V Flat rail
Table maximum load		200
Table size (length * width)		250*500
Table T type slot		14×1
After the feed hand wheel		0.02/grid 2.5/round
Start feed wheel		0.01/grid 2.0/round
Feed Rate		0.002mm
Digital Display		0.001
Grinding wheel size (outer diameter * width * inner diameter)		200*30*31.75
Spindle speed	50Hz	2850
Main motor		1.5
Cooling pump		40
The surface of the base of parallelism		300:0.006
Surface roughness		Ra0.32
Machine tool overall size (L * w * h)		1.25*1.4*1.8
Gross weight, net weight		0.95
