Facturing Supply Hydraulic Stressing Mono Strand Jack for Sale

Product Description

Product Description

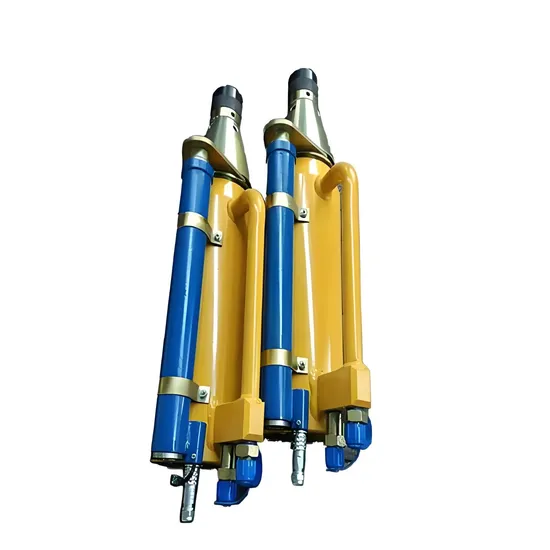

Prestressing mono jack
Prestressing mono jack is used in highway Bridges, railway Bridges, hydropower DAMS, high-rise buildings and other prestressing construction projects. Whether the tensile force value of thePrestressing mono jack device is accurate or not will directly affect the project quality and safety production. Therefore, it is very important to calibrate it and provide accurate and reliable test data.
Product Parameters

Item	Unit	Value
Nominal tension	KN	257
Nominal oil pressure	MPA	50
Tension piston area	M2	5.137*10
Return piston area	M2	1.335*10
Piercing hole diameter	MM	19
Trolley trip	MM	200
Dimensions	MM	180*568
Return oil pressure	MPA	Less than or equal to 25

Product structure
1, Prestressing Mono jack tool anchor front, Prestressing Mono jack can save prestressed reinforcement material.
2, Prestressing Mono jack has a number of different gaskets, Prestressing Mono jack can be selected according to the specifications and tension of the clip,
3, Prestressing Mono jack can achieve automatic clamping of prestressed tendons and anchorage, thereby reducing labor intensity and improving prestressed tension efficiency.
Applications
Prestressing Mono jack has compact structure, stable working during tension, high oil pressure and large tension. Prestressing Mono jack is used in highway Bridges, railway Bridges, hydropower DAMS, high-rise buildings and other prestressing construction projects.
Company Profile
Shaanxi Saifusite Mechanical Electrical Equipment Co., is a professional company which engaged in researching, developing, manufacturing hydraulic mining equipment, hydraulic construction machinery equipment, ultra-high pressure pumping station, cylinder and other mine equipment.Since the company since its inception, has been in line with the concept of quality first, reputation first, with high quality and thoughtful service return customers and society.

Packaging & Shipping
FAQ
Q1: Warranty terms of your machine?A1: One-year warranty for the machine and technical support according to your needs.Q2: Will you provide some spare parts for the machines?A2: Yes, of course.Q3: What about the voltage of products? Can they be customized?A3: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your equipment. Q4: Which payment term can you accept?A4: 100% T/T( Decide according to actual situation)Q5: How long will it take to arrange production?A5: we can deliver the normal goods within 3-5 working days. Other nonstandard electrical items we will deliver within 25-30 days. Q6: Can you accept OEM orders?A6: Yes, with a professional design team, OEM orders are highly welcome. Q7: Which trade term can you accept?A7: Available trade terms: FOB, CIF, CFR, EXW, etc.

---
