| US$1.00-2.00 | 1 Piece (MOQ) |

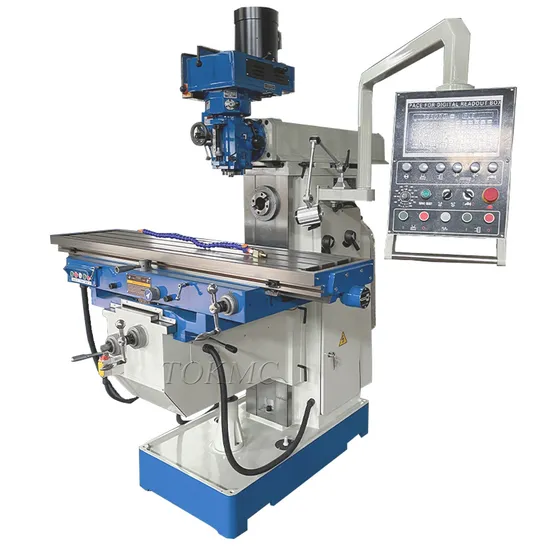

| Specification turret milling machine | PTX1668 |
| Spindle taper | ISO 40 Vertical ISO50 Horizontal |
| Spindle travel | 127mm |
| Spindle speed vertical | 16steps 65--4500 rpm 50hz 80-5440 rpm 60Hz |
| Auto quill feed | 0.04,0.08,0.15/0.0015", 0.003", 0.006" |
| Spindle head swivel left and right | 90 degree |
| Worktable size | 1700X400mm |
| Worktable swivel angle | ±45° |
| The max.weight on worktable | 1000 kgs |
| T-slots Number-table Width -Distance | 4-18mm-100mm |
| Table travel Longitudinal/Cross/Vertical | 1300mm/420mm/600mm |
| X.Y.axes feeding | 8steps25-800mm/min Rapid feeding 800mm/min |
| Z axes feeding | 8 steps 8-267mm/min Fast forward 267mm/min |
| Distance from spindle hole center to worktable surface main horizontal spindle | 0-440mm |
| milling head horizontal (low position) | 150-590mm horizontal |
| milling head horizontal(side position) | 340-780mm horizontal |
| milling head horizontal (high position) | 530-970mm horizontal |
| Distance from spindle nose to worktable surface | 50-650mm(Vertical) |
| Distance from Vertical spindle center to guideway surface | 0-1000mm(Vertical milling spindle head) |
| Main motor | Vertical Milling 4 KW (Vertical) Milling 5.5KW (Horizontal) |
| Feeding motor (Servo motor) | 2.36KW 15N.M |
| Coolant pump motor | 90W |
| Coolant pump flux | 25 Litres/minute |
| Overall dimensions | 2300X2300X2270mm |
| G.W | about 3600kg |
