US$360,000.00-370,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
GS, ISO 9001
Transport Package
Plywood Case
Specification
17000mm*8600mm*4620mm
Production Capacity
50 Sets/Year
Product Description

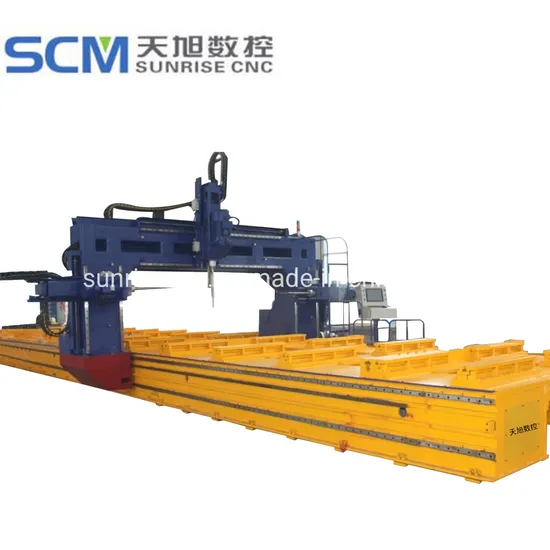

MACHINE MAIN CHARACTER Reduced setup time & simple to operate; Sturdy frame, no vibrations and noiseless; Circle-Controlled system to measure accurately; Specialized for large-section beam drilling. Layout marking function easy for welding. Autocad, X-STEEL & Tekla file reading instead of manual input.
TBD2510 SPECIFICATIONS
Operating Range
| H-Beam | 1000 x 400 mm ~ 2500 x 1500 mm |
| Channel | 1000 x 400 mm ~ 2500 x 1500 mm |
| Box-Beam & Column Beam | 1000 x 400 mm ~ 2500 x 1500 mm |
| Max. Length of Workpiece | 18,000 mm |
| Max. Loading Capacity | 3 tons/m, total 35 Tons/whole worktable |
Drilling Unit
| No. of Drilling Spindle | 3 (Left + Right + Top) |
| Drilling Diameter | Φ12.5 ~ Φ50 mm |
| Thread Tapping | 4# |
| Motor Power of Drilling Spindle | 5.5 kW x 3 |
| Spindle Feeding Stoke | Y1 axis: 1000mm; A axis: 600mm (horizontal)
Y2 axis: 1000mm; B axis: 600mm (horizontal)
Z axis: 2000mm; C axis: 600mm (vertical) |
| Spindle Y & Z movement | Yes |
| Feed | CNC feeding; 0 ~10 m/min (vertical to H-beam) |
| Drilling Tools & Tool Lube Model | Coated Drill Bit with mist spray cooling
Or
Carbide Drill Bit with inner cooling |
| Spindle rpm (servo) | Stepless120~560 rpm |
| Profile Height Measuring | Included |
| Profile Width Measuring | Included |
| Layout Point Marking (not drilling through) | Available (for welding purpose) |
Gantry System
| Moving Speed | 0 ~ 10m/min |
| Drive Model | Double side servo + Gear |
| Structure | Square Pipe + Plate; HF welded |
Control System
| Type | Computer + Mitsubishi PLC + Modules |
| Importing Software | AUTOCAD (*.dxf), TEKLA, X-STEEL (*.nc1, dstv) |
| Manual Programming | Available |
Hydraulic System (for tool changing & side push aligning)
| Hydraulic Motor Power | 5.5 kW |
| System Inner Working Pressure | 75 bar |
| Flux | 40 L/min. |
| Hydraulic Tank Content | 140 L |
| Hydraulic oil N0. | #46 |
Scraps Removal System
| Motor Power | 1.5 kW |
| Type | Chain & Plate recycling moving type |
| Speed | 10/min |
| No. of scraps removal system | 2sets |
Machine overall info
| Dimension (L x W x H) | L 17000mm x W 8600mm x H 4620mm |
| Total Weight | Around 50 Tons |
| Total Power | 40 kW |
WORKING PROCEDURE
The structure profile is lifted on the worktable by overhead crane. The operator press the side aligning button to enable the hydraulic side push function to align the beam to setup home position.
The Gantry moves from end of the Beam to detect the starting point. The operator send the drawings (*.dxf, *.nc1) to the machine and transfer to machine language automatically. And then, press the start button. The Gantry moves to the right position and stop ready for drilling The operator presses the tool removal button to loose the tool holder for drilling bit changing. The operator presses the start button to re-start the machine for drilling till all job being finished. The Gantry will move to a safe area for unloading the Beam (by overhead crane)
LIST OF KEY PARTS
| No. | Name | Code | Manufacturer |
| Main electric components |
| 1 | PLC | | Japan Mitsubishi / Omron |
| 2 | Servo motor | 1.8KW | Japan Yaskawa |
| 3 | Servo Driver | 1.8KW |
| 4 | Servo motor | 1.3KW |
| 5 | Servo Driver | 1.3KW |
| 6 | Servo motor | 0.85KW |
| 7 | Servo Driver | 0.85KW |
| 8 | Spindle motor | 5.5Kw | Japan |
| 9 | Transducer | 5.5Kw | Germany |
| 10 | Low-voltage apparatus | Siemens | Germany |
| 11 | Computer | LCD | Lenovo, China |
| 12 | Sensor / Switch | | Autonics |
| Main hydraulic components |
| 1 | Electromagnetic Valve | | ATOS, Italy |
| Main mechanical components |
| 1 | Ball screw | all | Taiwan HIWIN or Taiwan PMI |
| 2 | Linear guide | all | Taiwan HIWIN or Taiwan PMI |
>>
