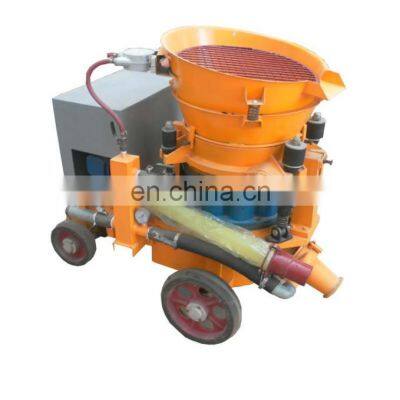

Non-explosion-proof type Electric Cement Shotcrete machine This shotcrete machine is widely used in the common construction of building.It is simple structured, easy maintenance, long service life and has other characteristics. The rotor chamber and the discharge elbow materials are made of flexible rubber abrasion. When working, under the action of the pressure can be rushed to the self-cleaning effect, reducing adhesive material and congestion, greatly reduced the maintenance workload of the machine. The machines set the advantages of wet and dry spray machine at home and abroad in one, it is easy to operate, sprays evenly, and has the advantage of a low dust, low rebound.It optimized the working environment, and improved the quality of spray layer. Specificaiton: Production capacity5-6m3 / hwater-cement ratio0.4 Conveying pipe diameter51mmMaximum transmission distance (horizontal)100mMaximum transmission distance (height)20mConsumption of air flow7-8 m3/minWorking air pressure0.20.4MPaMotor Power5.5kwVoltage380vMachine Gauge600mm (762 or 900mm)Dimension1600 × 796 × 1270 (mm)Total Weight700kg ModelCapacityAir consumptionConveying distanceMaterial ratioMotor powerMax Aggregate sizeConveying pipe inner diameterWeightJXPG-55 m3/h7-8 m3/h200m-40m⊥1:3-55.5kw20m51mm600kgJXPG-66-7 m3/h10-15 m3/h200m-40m⊥1:3-57.5kw20mm51/64mm800kgJXPC-77-8 m3/h10-15 m3/h200m-40m⊥1:3-57.5kw20mm51/64mm800kgJXKP-97-8 m3/h10-12 m3/h200m-40m⊥1:4-55.5kw15mm51mm1350kg
>>
