1000FT Wood Drum Packing CCS Copper Conductor Rg59 Coaxial Cable

Product Description

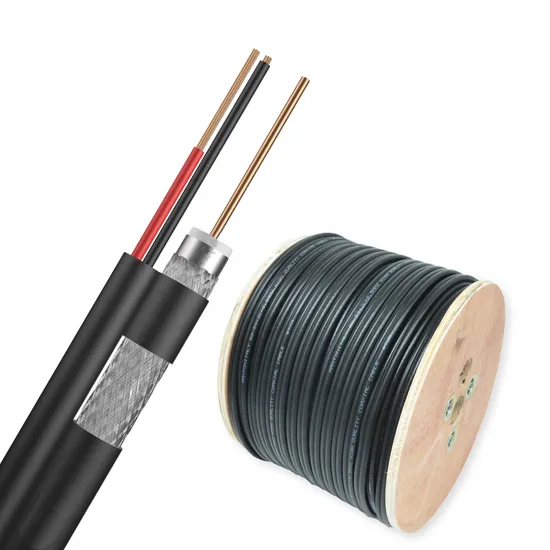

1000ft wood drum packing CCS copper conductor rg59 coaxial cable
20" Container Full Load: 350-420km.40" Container Full Load: 650-780km.
RG59 Siamese CCTV cable allows installers to run both the video and power to security cameras (analog CCTV, 720p and 1080p HD cameras) using a single cable run.
RG-59 coaxial cable comes in 500 and 1000 foot spools and is available in black or white colors.
The RG59 cable that CCTV Camera Pros supplies has a solid copper core and 95% copper braided shielding.
This is the best type of coax cable to use for CCTV and HD CCTV installations.

Specification and Consturcture

Material	Specification
Conductor	BC/CCS	0.81mm(20AWG,0.032'')
Dielectric	FPE	3.66mm(0.144'')
1st Shield	Al Foil	100%, Overlap>2mm
2nd Shield	BC or Al Braiding	40%-95%		53%
3rd Shield	Al Foil	-	100%, Overlap>2mm
4th Shield	BC or Al Braiding	-	-	40%
Jacket PVC/PE	Outer Diameter	6.1mm(0.24'')	6.1mm(0.24'')	6.73mm(0.265'')
	Nominal Thickness	0.81mm(0.032'')	0.76mm(0.030'')	0.86mm(0.034'')
Messenger	Steel	1.30mm

Techonlogy Data
TECHNOLOGY DATA

Characteristic Impedance	75±3Ohm
Capacitance	50±1pF/m
Velocity	>85%
Shielding Effectiveness	>100db
Insulation resistance	1000M(20ºC)
Frequence (at 20ºC)	Max.Attenuation
5MHz	2.82dB/100m
55MHz	6.73dB/100m
211MHz	12.47dB/100m
350MHz	15.75dB/100m
450MHz	17.72dB/100m
500MHz	18.70dB/100m
550MHz	19.52dB/100m
750MHz	22.87dB/100m
1000MHz	26.64dB/100m
1450MHz	32.41dB/100m
1750MHz	36.04dB/100m

Factory photos and production process
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.

Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo

---
