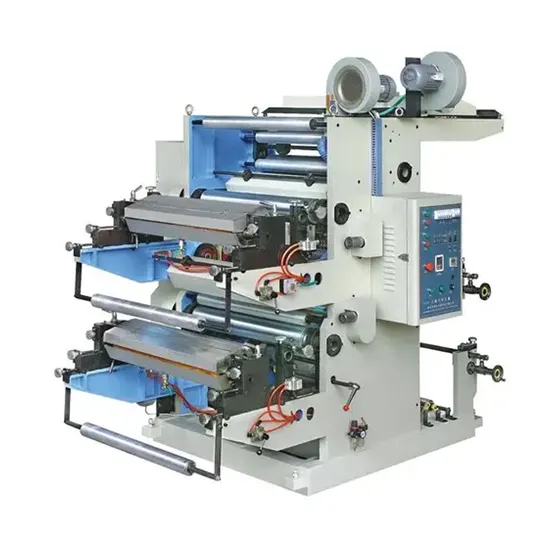

YT-2600 Best Selling Flexo Printing Machine

Product Description

YT-2600 Best Selling Flexo Printing Machine
Product Description
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc. Features
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° Continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed. Detailed Photos
Product Parameters

Type	YT-2600	YT-2800	YT-21000
Max. Web Width	600mm	800mm	1000mm
Max. Effective Printing Width	560mm	760mm	960mm
Range of Repeat Printing Length	191914mm	191914mm	191914mm
Max. Diameter of Roll Material	450mm	450mm	450mm
Printing Speed	50m/min	50m/min	50m/min
Plate Thickness(Both side adhesive tape included)	2.38mm	2.38mm	2.38mm
Total Power	8Kw	10Kw	12Kw
Overall Dimension	2300× 1860× 2145mm	2300× 2060× 2145mm	2300× 2260× 2145mm

---
