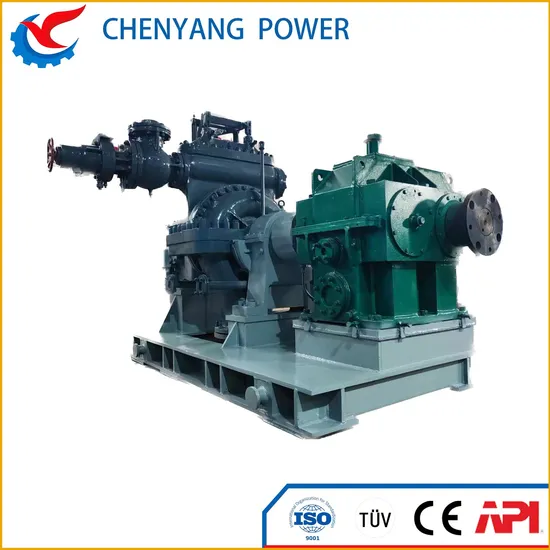

CD60 Series Single Stage Back Pressure Steam Turbine

Product Description

ADVANTAGES OF SMALL SCALE PRESSURE DIFFERENCE COGENERATION SET
- High flexibility
- Low investment and quick back
- Effectively solving the industrial waste heat, differential pressure utilisation
- Reducing costs and increasing efficiency for enterprises, and meeting customer needs.
CD60 SERIES SINGLE STAGE BACK PRESSURE STEAM TURBINE
CHARACTERISTICS
- One Curtis wheels 624mm.
- DEH adjusting system, with multi valves for adjusting.
- Forced lubricating.
- Main shaft speed 3000~7000r/min, after gear box conversion, output speed 1500r/min to drive generator.
- Can design according to customer's requirements.
TECHNICAL SPECIFICATIONS

Model	Rated power (kW)	Speed (r/min)	Intake pressure (MPa)	Intake temperature (ºC)	Exhaust pressure (MPa)	Exhaust temperature (ºC)	Steam consumption (t/h)	Weight (tons)
B1-2.35/0.294	1000	6500/1500	2.35	390	0.294	222	12	7.5
B1-2.35/0.49	1000	6500/1500	2.35	390	0.49	237	15	7.3
B1-3.43/0.294	1000	6500/1500	3.43	435	0.294	225	9.6	8
B1-3.43/0.49	1000	6500/1500	3.43	435	0.49	240	12	8
B1-3.43/0.98	1000	6500/1500	3.43	435	0.98	305	18	8
B1.5-2.35/0.294	1500	6500/1500	2.35	435	0.294	222	17	8
B1.5-2.35/0.49	1500	6500/1500	2.35	390	0.49	237	24	7.5
B1.5-2.35/0.98	1500	6500/1500	2.35	390	0.98	299	30	7
B1.5-3.43/0.294	1500	6500/1500	3.43	435	0.294	225	14	8
B1.5-3.43/0.49	1500	6500/1500	3.43	435	0.49	240	18	7.5
B1.5-3.43/0.98	1500	6500/1500	3.43	435	0.98	305	27.6	7
B0.75-2.35/0.294	750	3000	2.35	390	0.294	222	12	4.67
B0.75-2.35/0.49	750	3000	2.35	390	0.49	237	12.89	5
B1-2.35/0.294	1000	3000	2.35	390	0.294	222	13.5	7

NOTE:
- The intake and exhaust pressure is absolute pressure.
- Steam turbine weight 8.5 tons.
SUCCESSFUL PROJECTS PRESENTATION
USER: SUGAR MILL COGENERATION PROJECT, REPLACING DESUPERHEATER
MODEL: B1.6-0.98/0.4
POWER: 1600KW
INTAKE PRESSURE: 0.98MPa FROM HEAT RESOURCE
EXHAUST PRESSURE: 0.4MPa FOR PRODUCTION
GENERATOR: SYNCHRONOUS GENERATOR

---
