Basic Info.
Customized
Non-Customized
Main Voltage
3VDC Battery (Non-Removable)
Operating Current
Standby Status≤15ua, Alarm Status≤20mA
Co Detection Range
0-999 Ppm
Alarm Level
60~90 Minutes @ 50ppm
Materials and Colors
ABS, White
Operating Temperature
-10 to 40°c (14~104°f)
Transport Package
Carton Box
Specification
104mm*104mm*39.2mm
Product Description

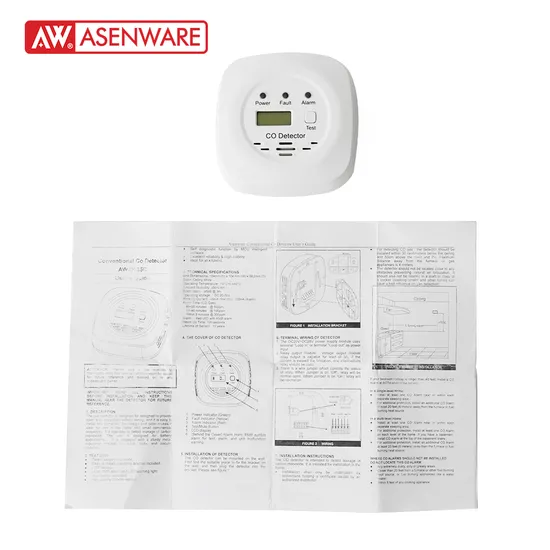

Product Description Standalone LPG Gas Detector The standalone Carbon Monoxide detector AW-D125S is designed to provide open area CO detection without wiring, and it is easy to install and construct. the design and color make it ideal for use in the home. It is intended to detect leakage of carbon
monoxide. The unit is designed for battery applications.
It is equipped with a sturdy mounting bracket for quick, easy, and secure installation. Features 1. Low Standby Current
2.High -Capacity batteries 3. LCD display
4.Wide detection range
5.Low battery/Fault indication 6.10 Years sensor lifetime 7.Meets all requirements of standard EN 50291-1-2018
| Model | AW-D125S |
| Main Voltage | 3Vdc Battery (non-removable) |
| Operating currenT | Standby status≤5mA, Alarm status≤20mA |
| Co detection range | 0-999 ppm |
| Alarm Level | 60~90 minutes @ 50ppm 10~40 minutes @ 100ppm Within 3 minutes @ 300ppm |
| Materials and colors | ABS,White |
| Sensor lifetime | 10 Years |
| Mating Host | AW-CFP2166 series fire alarm control panel |
| Operating Temperature | Class A temperature range: -10 to 40°C (14~104°F) Humidity: 5 to 95% RH, non-condensing |
standard | EN 50291-1-2018 |
| Size | 104mm*104mm*39.2mm |
| Weight | About 144g (with package) About 175g (without package) |
Why Choose Us Certificate
Company profile ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005. Driven by a commitment to sound operations, ongoing innovation, and open collaboration, we have established a competitive fire safety products line include addressable fire alarm system, conventional fire alarm system, central monitoring emergency light system, fire telephone and emergency audio system, fire pump, fire hose and gas suppression system. Our fire safety products ,solutions and services are used in over 100 countries. Here are our product ranges:
1-Conventional fire alarm system
2-Addressable fire alarm system 3-Wireless fire alarm system
4-Fire sprinkler
5-FM 200/CO2 gas fire suppression system
6-Emergency light system
7-Addressable fire telephone system
8-Voice evacuation control panel and speakers 9.Fire pump and fire valve FAQ 1.Payment term lWe support:A: TT, L/C at sight, Ali assurance online payment link (credit/debit card); 2.What's your delivery time? 1)products in stock : one week working days
2)Products out of stock : two week working days
3)FM200 system: two week working days
4)Pump/ water system: four weeks/three week working days 3.What's your warranty?
2 years for fire alarm and suppression system
1 year for fighting systems like fire pump, fire valve, and fire hose and
cabinet. 4.Does your company has MOQ?
We know you need our products for tests only so we can support you for
a sample and not set MOQ for you. 5.what's kind of shipment you could support?
By sea/air/express/pick up by yourself 6.How is your package?
Carton box-fire alarm product
Wooden box-fire fighting product
Customized packing 9.What's the price term?
EXW;FOB;CFR;CNF;CIF;DDP.
>>
