High-Precision Xks2400 CNC Gantry Milling Machine for Non-Metals

Product Description

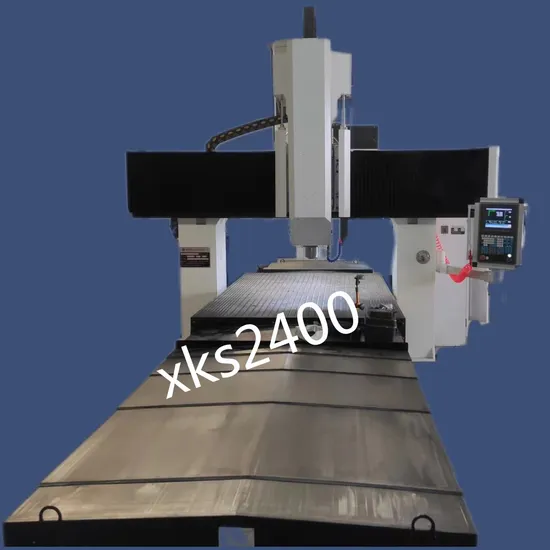

XKS2400 non metal material gantry cnc milling machine
Product Description

CNC gantry milling machine, used for processing non-metallic materials such as aluminum profiles and nylon. Detailed instructions are as follows:
1, Machine tool structure description:
The main body of the CNC gantry milling machine adopts a high-strength resin sand casting structure, which is rigid and does not deform after aging treatment. The workbench is made of high-strength cast iron material, and the machining range of the machine tool is large.
The X-axis of the machine tool guide adopts Taiwan's high-precision linear rolling guide, with a high rated load, low friction coefficient, no crawling at low speeds, and fast starting at high speeds. The Z-axis is equipped with a cylinder balance device.
The three-axis transmission adopts Taiwan's precision ball screw and uses specialized bearings for precision screw, with high axial tension and good accuracy maintenance. X. The Y-axis motor and screw are directly connected for smooth operation and low noise.
The spindle is driven by a servo motor. The spindle is a Taiwanese mechanical spindle with a sleeve structure installation, good rigidity, and high rotation accuracy. The machine tool is equipped with an automatic cutting device.
The CNC system adopts Taiwan's new generation of highly intelligent system, which realizes three-axis linkage and can complete milling processing of straight, oblique, and curved contours. The driving motors are all AC servo motors.
The CNC control console is a single unit operation with an electronic handwheel for easy tool alignment and flexible operation.
The machine tool is equipped with intermittent automatic lubrication, a volumetric oil separator, and a quantitative oil supply to ensure sufficient and reliable lubrication.
Install guide rail protective covers on the x and y guide rails of the machine tool to prevent dust and debris, and extend the service life of the guide rails.
10: The workbench is a vacuum specific adsorption platform, which facilitates the processing of thin plate workpieces. The vacuum pump is selected from high-quality domestic brands, with forced air cooling, making it easy to use.
11: Configure automatic power-off function. After the machining program stops, the power supply of the machine tool can be automatically cut off.
12: Configure automatic air cooling device, which can be controlled by M code.
13: The electrical control cabinet is equipped with isolation transformers to effectively protect all electrical components of the cabinet.
14: The second party shall provide the first party with free installation and debugging of the machine tool.
15: The electrical system adopts advanced design concepts and techniques, widely using modern design methods and tools such as CAD, making the machine tool reliable in performance, easy to operate, and easy to control.
Use range
Equipment usage
This equipment is mainly used for milling, boring, and drilling complex shaped large plates such as non-metallic carving processing and insulation boards in the electrical industry. It has a reliable structure, high degree of automation, simple operation, and high production efficiency.
The machine tool consists of a bed body, worktable, column, crossbeam, support plate, and spindle box. All castings are made of high-strength cast iron molded with resin sand, which has good rigidity and strong stability. They have undergone secondary aging treatment such as thermal aging and vibration aging to fully eliminate the internal stress of the castings.

Product Parameters

Main parameter
Item	unit	XKS1015	XKS1500	XKS1600	XKS2000	XKS2400	XKS2500
bed		Two guideway	Two guideway	Two guideway	Two guideway	Two guideway	Two guideway
width	mm	810	1160	1160	1660	1660	1660
worktable
Worktable width	mm	1000	1500	1600	2000	2400	2500
Worktable length	mm	1500	2500/3200/4300	2100/4300	2000/4000	2400/4500	3000/4500
T-shaped groove (width, spacing, quantity)		22-170-6	22-180-8	22-180-8	22-180-11	22-240-10	22-250-10
Weight load	kg/m2	1000	1000	1000	1000	1200	1200
travel
X axis travel	mm	1700	2700/3400/4500	2300/4500	2200/4200	2600/4700	3200/4700
Y axis travel	mm	1200	1700	1700	2200	2600	2700
Z axis travel	mm	400	400	400	400	400	400
Gantry width	mm	1250	1650	1650	2350	2700	2700
spindle
Spindle rotating	rpm	6000	6000	6000	6000	6000	6000
Main motor power	kw	5.5	5.5/7.5	5.5/7.5	5.5/7.5	5.5/7.5	5.5/7.5
Spindle taper hole		BT40	BT40	BT40	BT40	BT40	BT40
Distance from spindle to worktable	mm	50-450	50-450	50-450	50-450	50-450	50-450
