High Quality Extrusion Blow Molding Machine for HDPE PP Bottles 5~20L

Product Description

Company Profile
Product Description

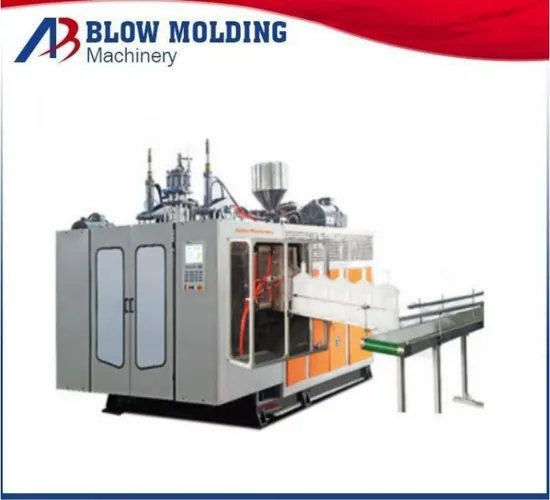

10~20L HDPE PP bottles blow molding machine
Automatic extrusion blow moulding machine:
ABLB90full automatic blow molding machine is suitable for various kinds of plastic bottles in all shapes from 13L to 50L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years.
The machine looks neat and nice
Perfect function with economic investment. Product Parameters

Max. Product volume	50 liters
Dry cycle	450pc/h
Screw diameter	90mm
Screw L/D ratio	25 L/D
Screw drive power	37 KW
Screw heating capacity	18 KW
No.of heating zone	4 zones
Output of HDPE	130 KG/H
Oil pump drive power	30 KW
Clamping force	260 KN
Max.size of mold	450-1000mm
Mold stroke	700X950mm
Max.die diameter	340mm
Die heating power	7.6 KW
Die heating segments	4 zones
Blowing pressure	0.8mpa
Air volume	1.0 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN

Our Advantages
Detailed Photos
FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.

---
