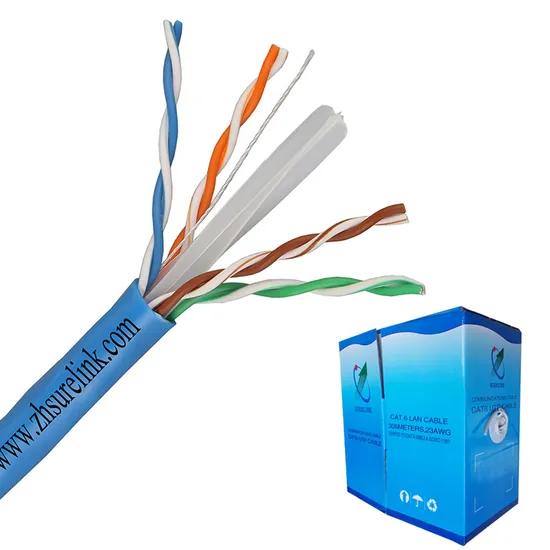

UTP CAT6 CCA 305meter Every Roll Indoor Outdoor Network Ethernet Internet Cable Round Belden UTP Cable

Product Description

Surelink Factory Indoor Bare Copper or CCA 1000ft 305m roll data cable Lan Network Cable Ethernet belden Cable UTP Cat 6 FTP CAT6A SFTP CAT6 F/UTP CAT6 round utp cable

Technical Parameters

Material Instruction
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download
in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B,UL444
Certificates ISO9001,14000, UL, ROHS.

Cable Specification

Item Name	UTP CAT6 Lan Cable data cable
TYPE	Cat6
Conductor	CCA/23AWG Solid Copper
Number of Conductors	8
Insulation Material	HDPE
Cross Material	PP
Application	Lan cable
Jacket	PVC/LSZH
Operating temperature	-20 ° C - +60 ° C
Standard	EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS
Certificate	CE/ISO/RoHS Approved

Related Package

Package Details:
305meters or 1000ft pull box or wooden drum
Two boxes into a carton

OEM / Related Production For Lan Cable

OEM custom-made production according to different customer's request. Shape, PVC ,color,
Conductor diameter, degree of tightness, logo design, Inner and Outer package design, all of
below request are available.

Product	Network Lan Cable
Type	CAT3/CAT5E/CAT6/CAT6A/CAT7
Conductor	23 AWG/24 AWG/26 AWG BC/CCA
Insulation	HDPE (high density polyethylene)
Shielding	Pet Tape/ Aluminum Foil
Ripcord	Nylon
Cross	PP
Drain Wire	0.40mm tinned copper/CCA or BC
Jacket	PVC/LSZH/PE
Operating temperature	-20 ° C - +60 ° C
Working Life	20~25 years
Applications	Computer network cabling project
	Broadband network communication
	Digital ISDN network and ATM 155mbps network
	Long distance and local area network commubication

Related Hot Models

Manufacturer Introduction

Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables
and telecom accessories. We have more than 20 years experience in this line.Our factory has over
twenty production lines and 300 employees.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look
forward to woking with all clients from all over the world.
OEM and ODM order highly welcome !

Main Cable Categories Provided by Us

1.Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.

Workshop and Company Show

Package and Delivery

Payment and Shipping

Payment
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
Shipping
If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,
FEDEX or EMS.
For big order,we will ship the goods by air or by sea.

---
